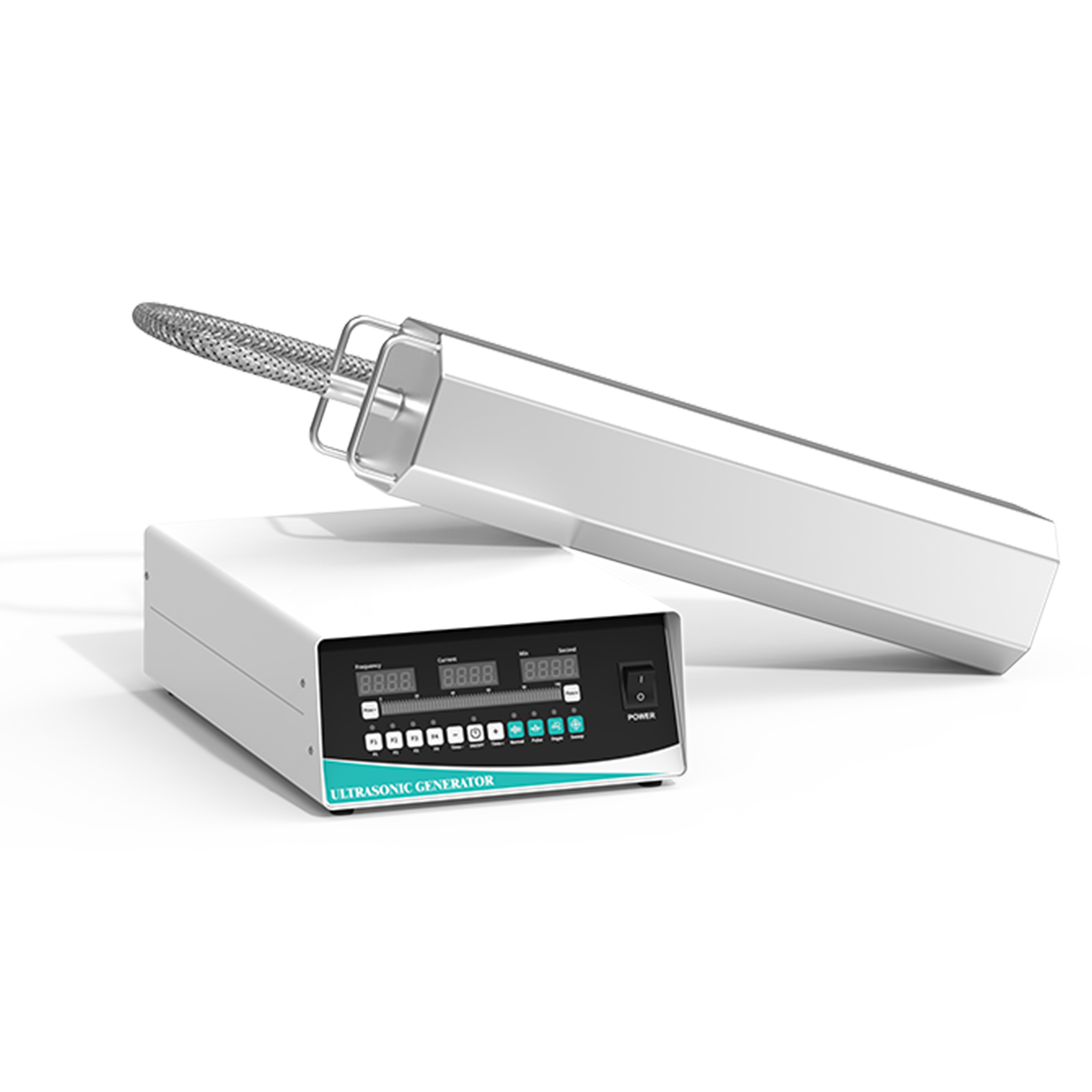

4-Sided Immersion Ultrasonic Transducer Rod with Digital Generator 600W 28kHz 40kHz Submersible Vibration Tube for Industrial Wash Tanks

The GHQ1230 Submersible Ultrasonic Transducer Rod delivers multi-directional acoustic cavitation for industrial cleaning, degassing, sonochemistry, and liquid homogenization. Designed to integrate directly into new or existing processing tanks, this compact immersion probe eliminates the need to replace existing tank structures.

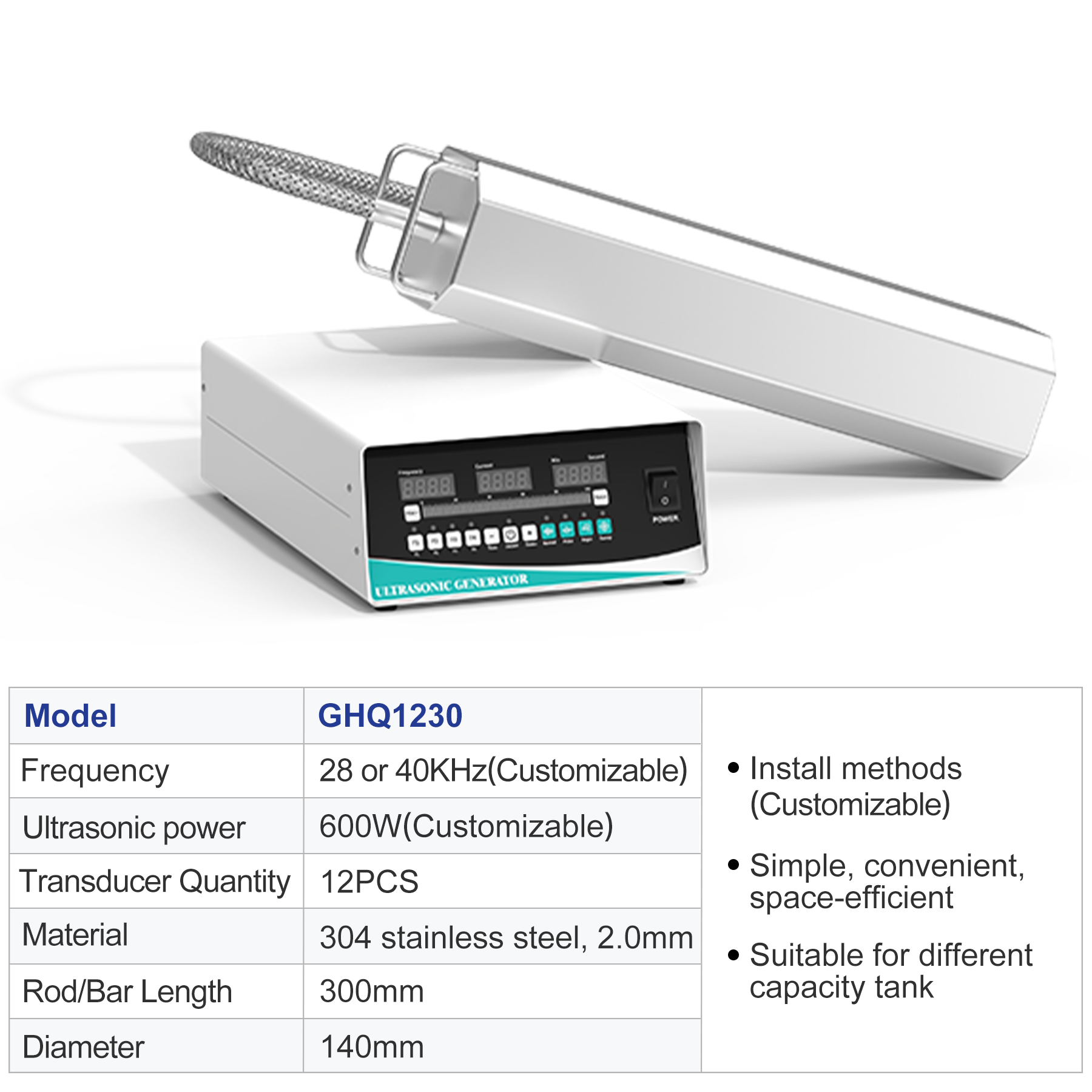

Technical Specifications

Frequency Selection Guide:

• 28 kHz: Produces high-intensity cavitation bubbles for heavy-duty degreasing, carbon removal, and coarse industrial decontamination.
• 40 kHz: Produces finer, denser cavitation bubbles suited for general cleaning, precision components, blind holes, and sensitive surfaces.

Heavy-Duty Construction & Custom Engineering

Each transducer probe is fabricated using thick-walled industrial stainless steel to withstand aggressive cavitation erosion and prolonged submersion. High-output piezoceramic transducer arrays are bonded symmetrically inside polygonal housings, delivering intense 4-sided multi-directional acoustic energy radiation throughout the fluid medium.

Units can be built to exact dimensional requirements, including varied lengths, mounting flanges, bulkhead pipe threads, and multiple cross-sectional geometries (square, hexagonal, and cylindrical).

Core Applications

• Precision Cleaning: Engine parts, machined hardware, PCB assemblies, optical molds, and chemical filters.
• Ultrasonic Degassing & Defoaming: Rapidly coalesces and extracts micro-bubbles from resins, epoxies, inks, coatings, and pharmaceutical solutions.
• Dispersion & Emulsification: Breaks down particle agglomerates, disperses nanomaterials, and stabilizes multi-phase chemical emulsions.
• Extraction & Sonochemistry: Accelerates mass transfer in botanical extraction and chemical synthesis.

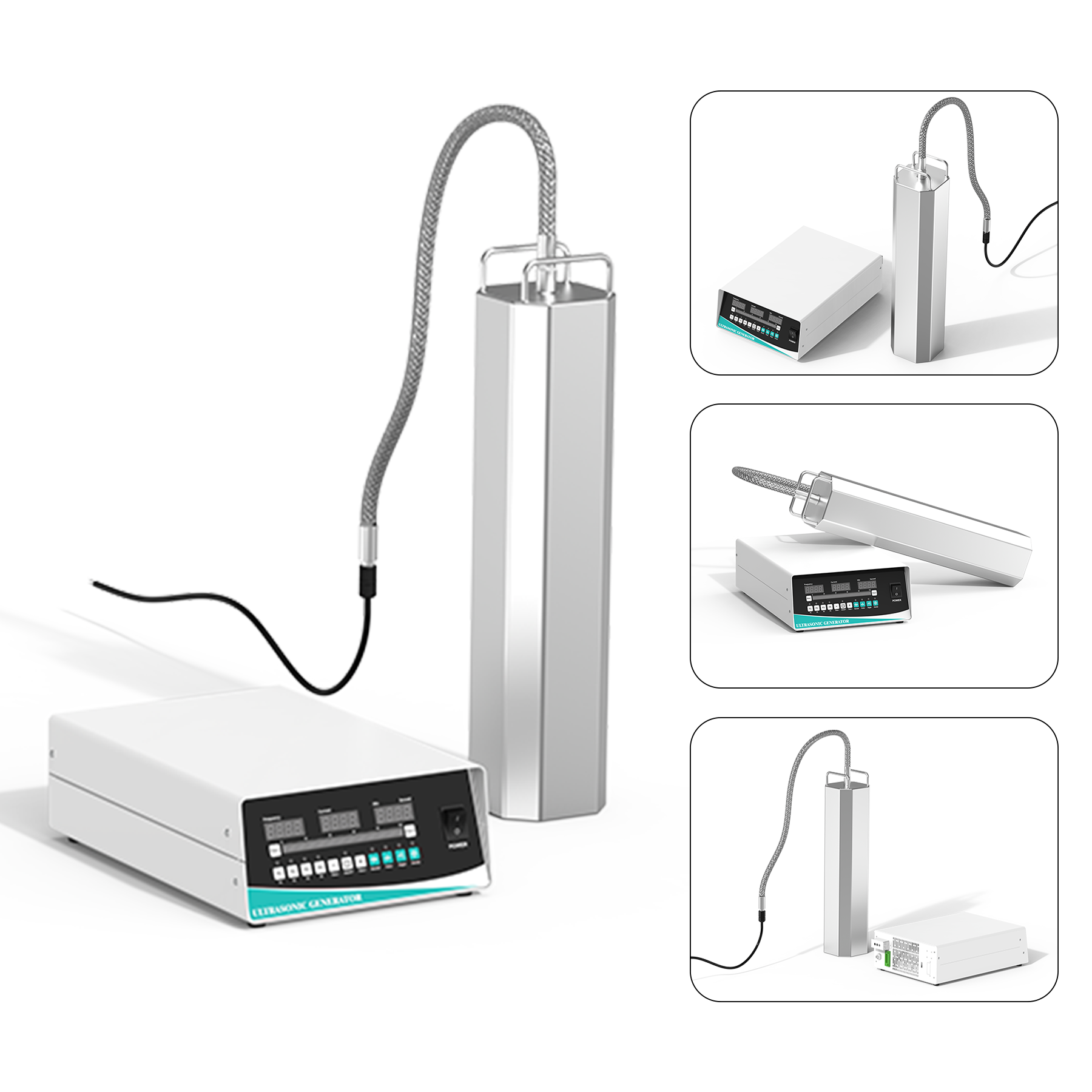

Installation & Mounting Configurations

The modular transducer housing accommodates versatile installation arrangements depending on tank geometry and liquid flow dynamics.

1. Pack & Transducer Conduit Configurations

• Over-the-Rim Conduit: Fluid-tight conduit bends up and over the tank lip, avoiding tank wall penetrations.
• Through-Wall Bulkhead: Rigid pipe exits directly through a sealed port on the tank side or base for a low-profile installation.

2. Transducer Rod Configurations

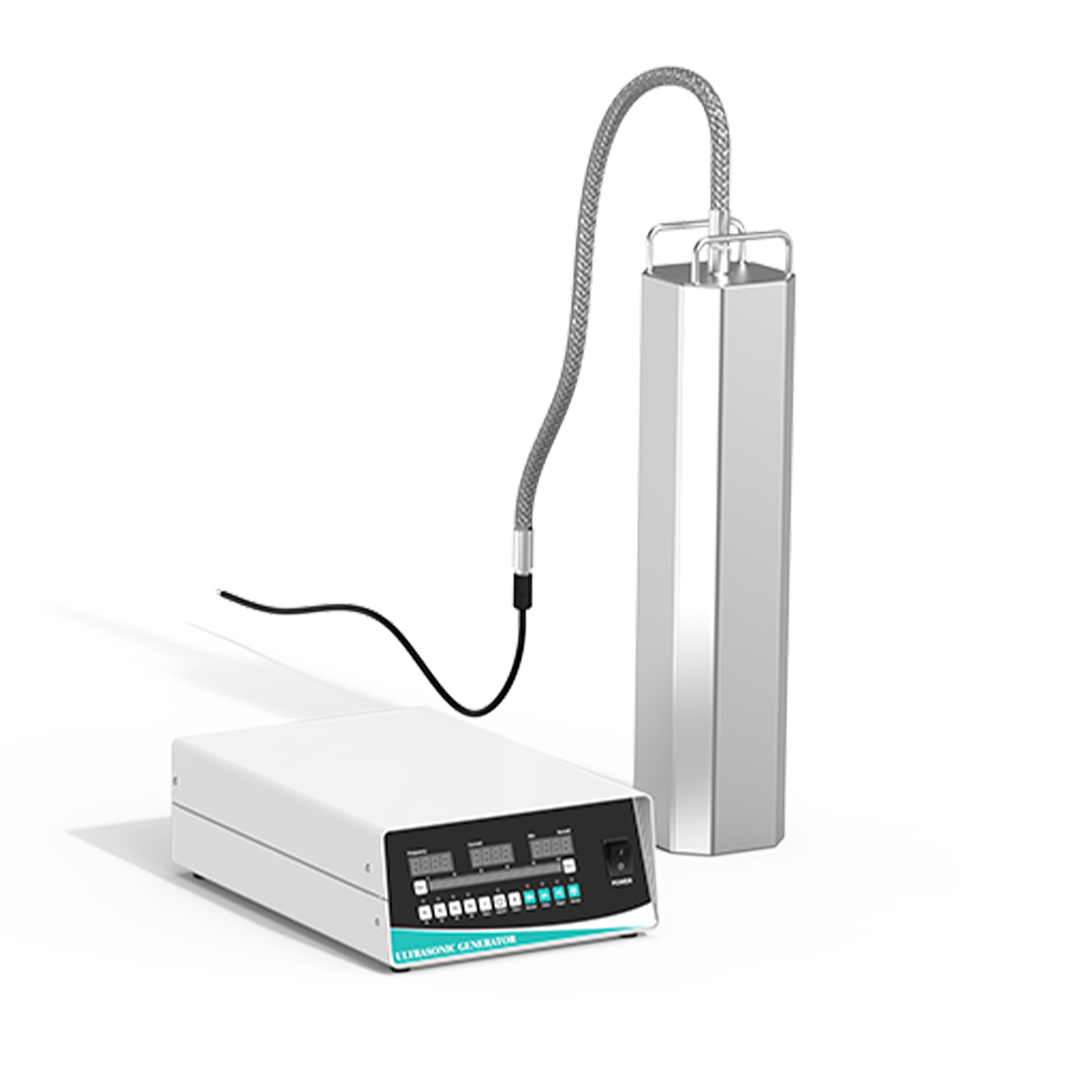

• Top-Suspended (Vertical): Submerged vertically from the tank lip via a suspension collar or flange.

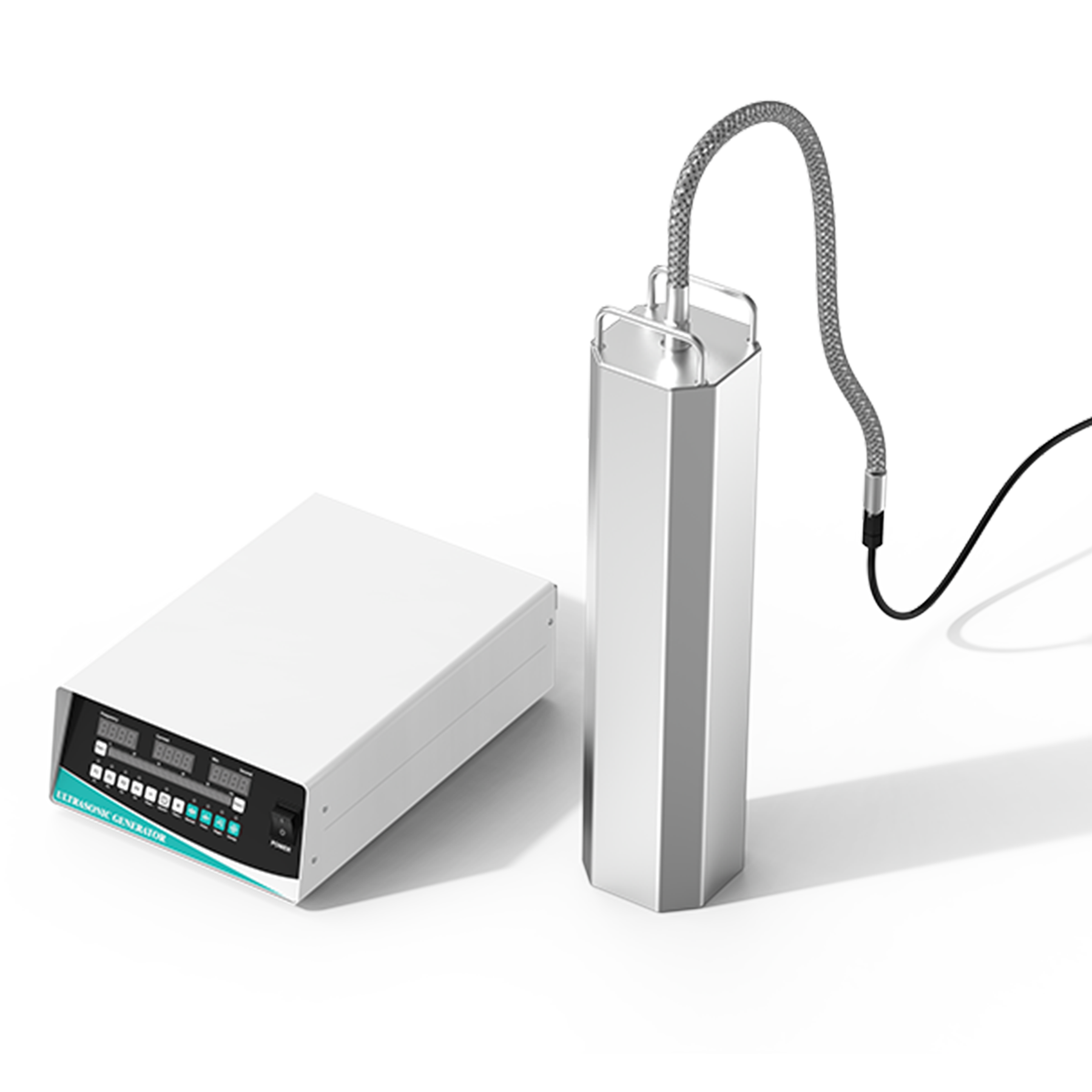

• Bottom-Standing (Vertical): Secured upright from the bottom floor of the tank.

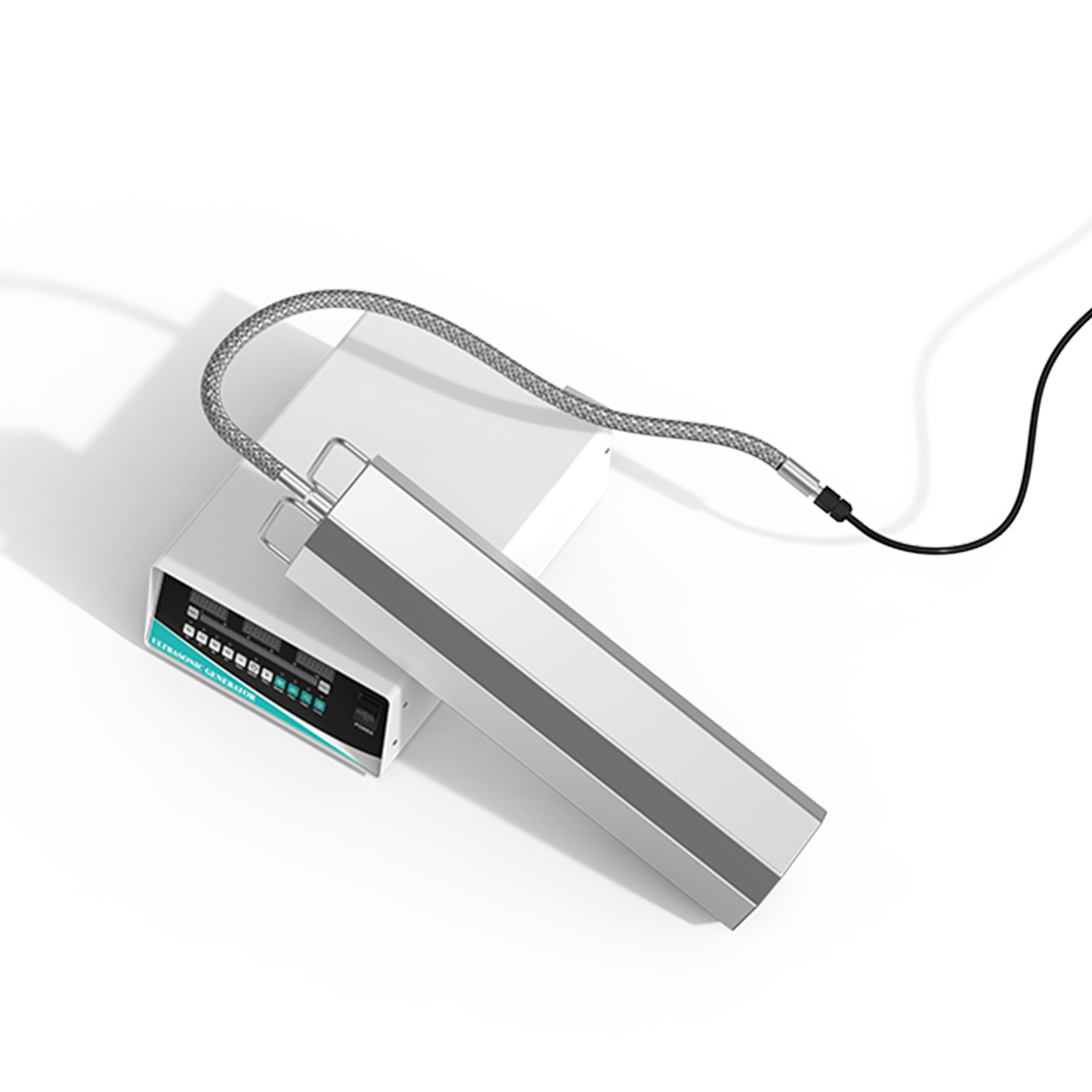

• Horizontal Side-Mount: Mounted horizontally across the lower or middle zone of the vessel.

Mandatory Rule: The active transducer probe must be completely submerged in liquid prior to startup. Dry operation will cause immediate overheating and permanent component failure.

Quality Control & Global Certifications

Every unit undergoes rigorous staging inspections, including transducer impedance matching, pressure testing of welded seams, and high-voltage insulation verification.

All systems comply with international quality and safety benchmarks:

• ISO 9001:2015 Quality Management System certification
• CE Marking (EMC Directive & Low Voltage Directive)
• RoHS Compliance
• FCC Part 15 verification

Operating Instructions & Precautions

• Fluid Immersion: Ensure the active radiating face is fully submerged before powering on the generator. Never operate dry.
• Workpiece Clearance: Maintain a minimum distance of 2 mm between any processed part and the probe surface to avoid localized acoustic reflection and surface wear.
• Chemical Compatibility: Use neutral or mild water-soluble industrial detergents. Highly concentrated strong acids or alkalis must be evaluated in advance; use SUS316L housings where chemical resistance is required.
• Duty Cycle Management: For continuous industrial cycles, allow intermittent cooling pauses (≥ 3 minutes) during multi-hour runs to extend transducer lifespan.

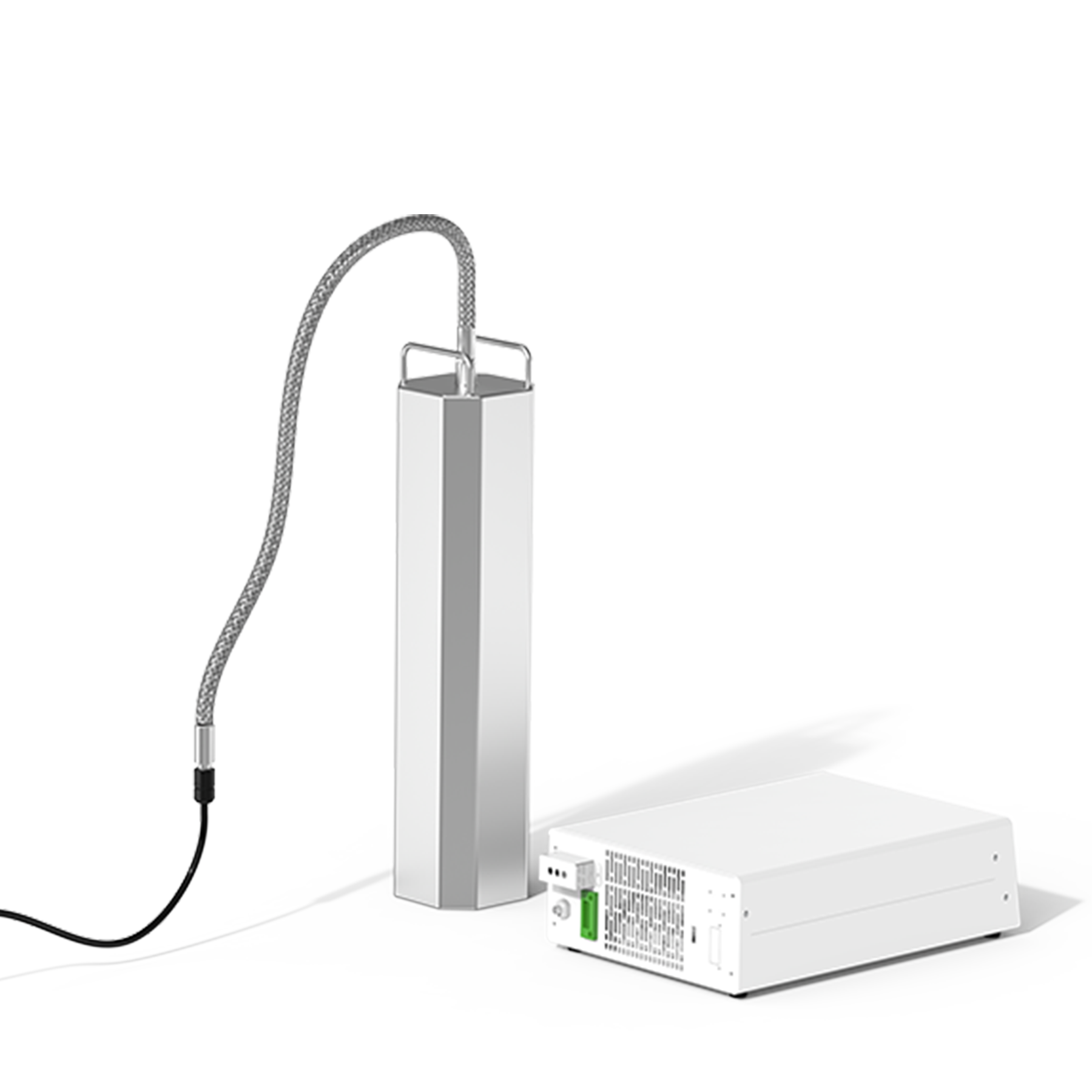

• Generator Protection: Install the ultrasonic generator in a dry, ventilated area away from fluid mist, splash zones, and corrosive fumes.
• Packaging: Shipped in heavy-duty export cartons or reinforced export wooden crates.
