Digital 150W Ultrasonic Cleaner Circuit Board Replacement Transducer Drive PCB Spare Parts for Ultrasonic Washing Tank Systems

This ultrasonic cleaning kit is engineered for DIY assembly, equipment retrofitting, and maintenance of 150W ultrasonic cleaning systems. Composed of industrial-grade electronic components, it delivers stable ultrasonic excitation and precise thermal control.

• Input Voltage: 100V–120V ~ 60Hz / 220V–240V ~ 50Hz
  (Units are configured and dispatched according to destination country voltage standards. Specific configurations can be selected by adding an order note).
• Key Features:
  • High-quality components for reliable performance
  • Easy installation for convenience
  • Customizable for personalized cleaning solutions
  • Improved cleaning efficiency for professional-grade results
  • Cost-effective compared to buying a new ultrasonic cleaner

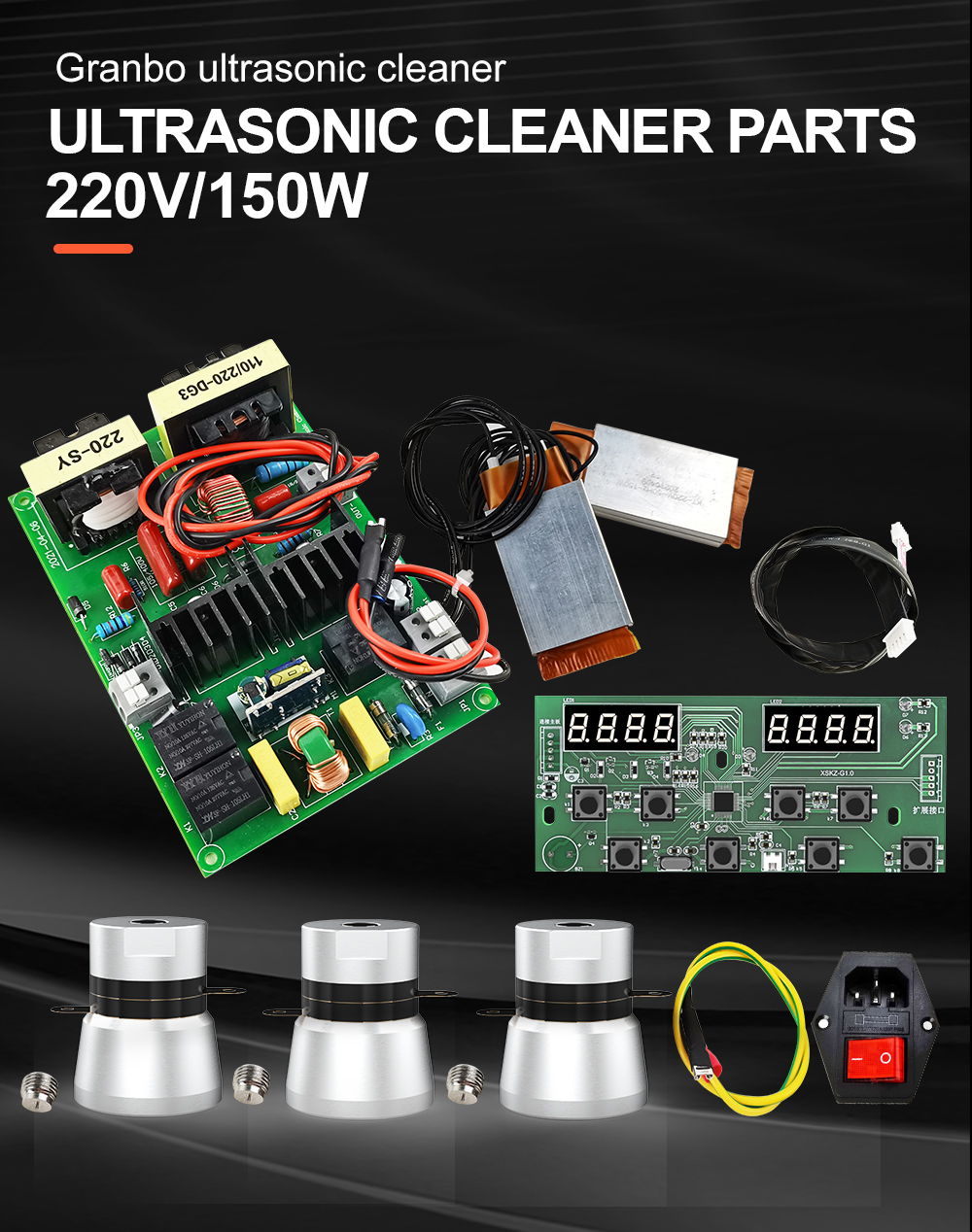

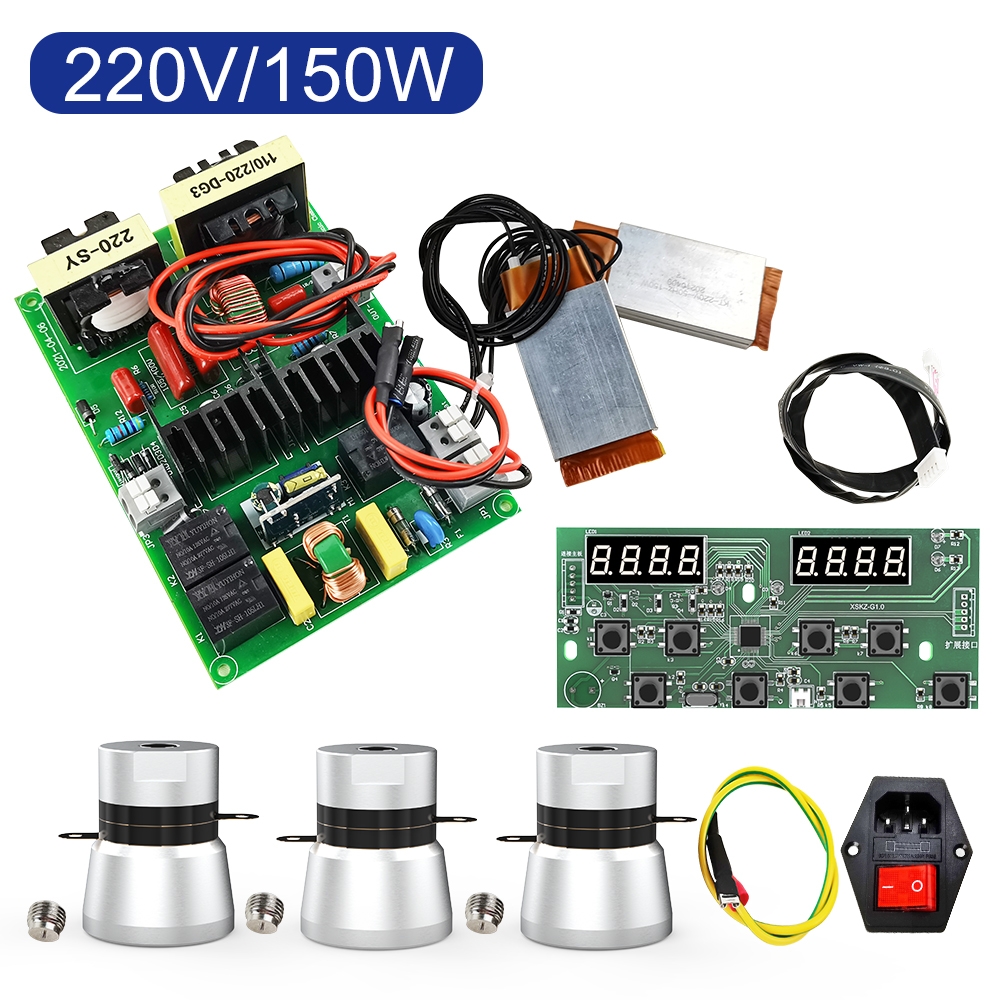

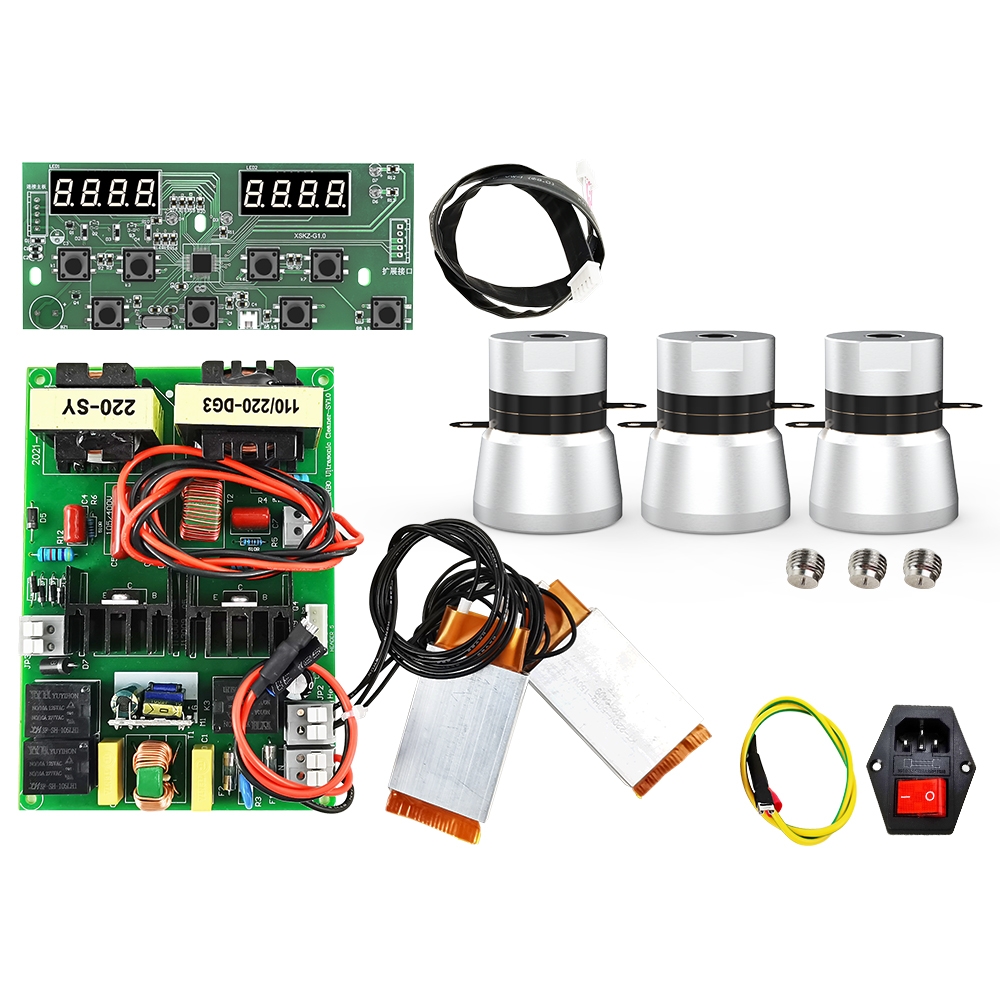

Package Contents

• 1 x Ultrasonic Generator Drive Board (Model: GRANBO Ultrasonic cleaner-SV1.0)
• 1 x Digital Display & Control Panel (Model: XSKZ-G1.0)
• 1 x 5-Pin Data Ribbon Cable
• 3 x 50W 40kHz Ultrasonic Horn Transducers (150W Total Output)
• 3 x Threaded Mounting Studs
• 2 x Heating Plates
• 1 x AC Power Inlet Switch Socket with Integrated Fuse
• 1 x Grounding Wire

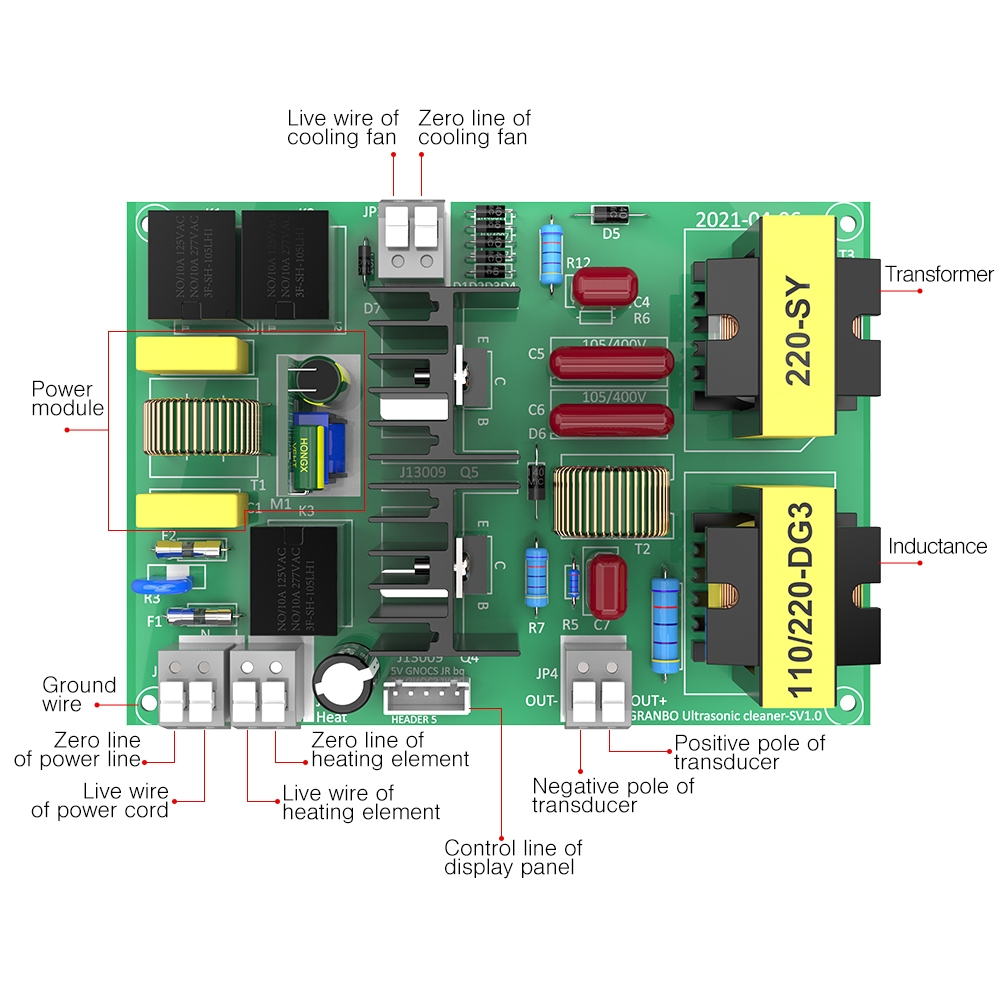

Driver Circuit Board Terminal Definitions

• Power Input (L / N): Screw terminals for Live (L) and Neutral (N) AC mains connection.
• Grounding Terminal: Dedicated connection point for chassis earth ground wire.
• Heating Element Terminals (Heat): Output screw terminals (Live and Neutral) supplying power to heating plates.
• Transducer Output (OUT+ / OUT-): High-frequency AC output ports; OUT+ connects to transducer positive terminals, and OUT- connects to negative terminals.
• Cooling Fan Terminals: Auxiliary Live and Neutral output terminals for an external cooling fan.
• Display Control Socket: 5-pin interface socket connecting the ribbon cable to the digital control board.

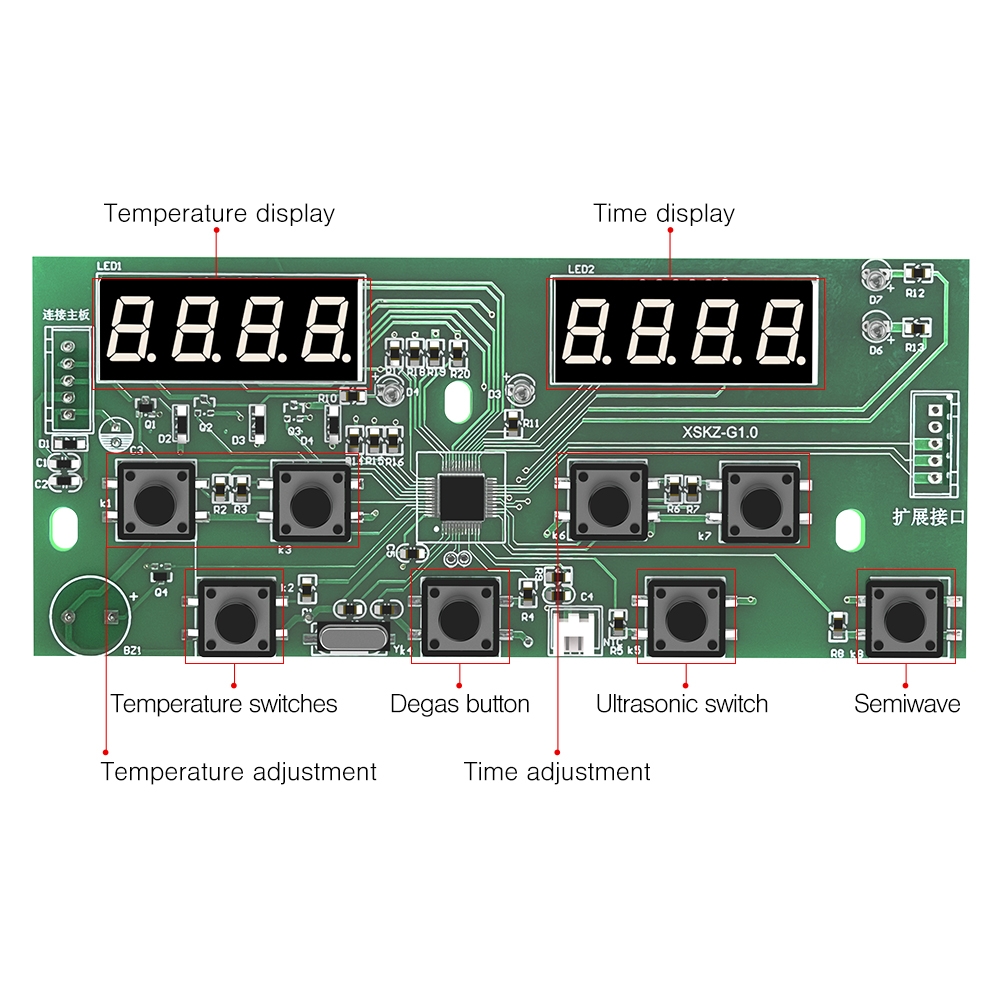

Digital Control Board Interface & Functions

• Temperature Display (LED1): 4-digit display showing set and real-time bath temperatures.
• Time Display (LED2): 4-digit display showing countdown timer duration.
• Temperature Switches: Independent control buttons to enable or disable the heating circuit.
• Temperature Adjustment: Dedicated push-buttons to set the target solution temperature.
• Ultrasonic Switch: Starts and stops ultrasonic cavitation.
• Time Adjustment: Dedicated push-buttons to configure cycle run times.
• Degas Button: Activates intermittent ultrasonic pulse cycles to rapidly remove dissolved air and gas bubbles from the liquid.
• Semiwave: Engages half-power pulse mode for cleaning sensitive components.

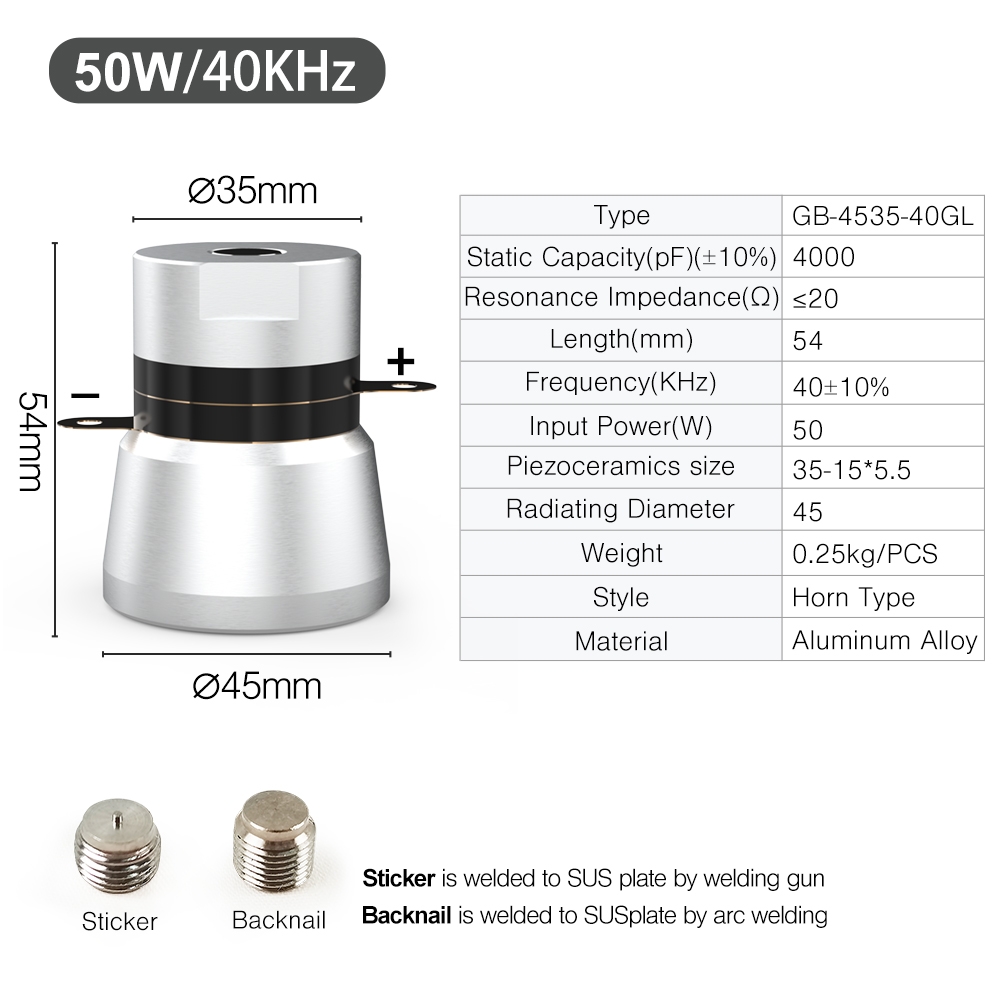

Transducer Technical Specifications

• Model: GB-4535-40GL
• Style: Horn Type
• Input Power: 50W per transducer (150W total across 3 units)
• Frequency: 40 ± 10% kHz
• Static Capacitance: 4000 ± 10% pF
• Resonance Impedance: ≤ 20 Ω
• Piezoceramics Dimensions: 35 mm x 15 mm x 5.5 mm
• Top Diameter: Ø35 mm
• Radiating Face Diameter: Ø45 mm
• Total Height: 54 mm
• Weight: 0.25 kg / pc
• Material: Aluminum Alloy
• Mounting Stud Options:
  • Sticker stud: Welded to stainless steel (SUS) plate with a stud welding gun.
  • Backnail stud: Welded to stainless steel (SUS) plate via arc welding.

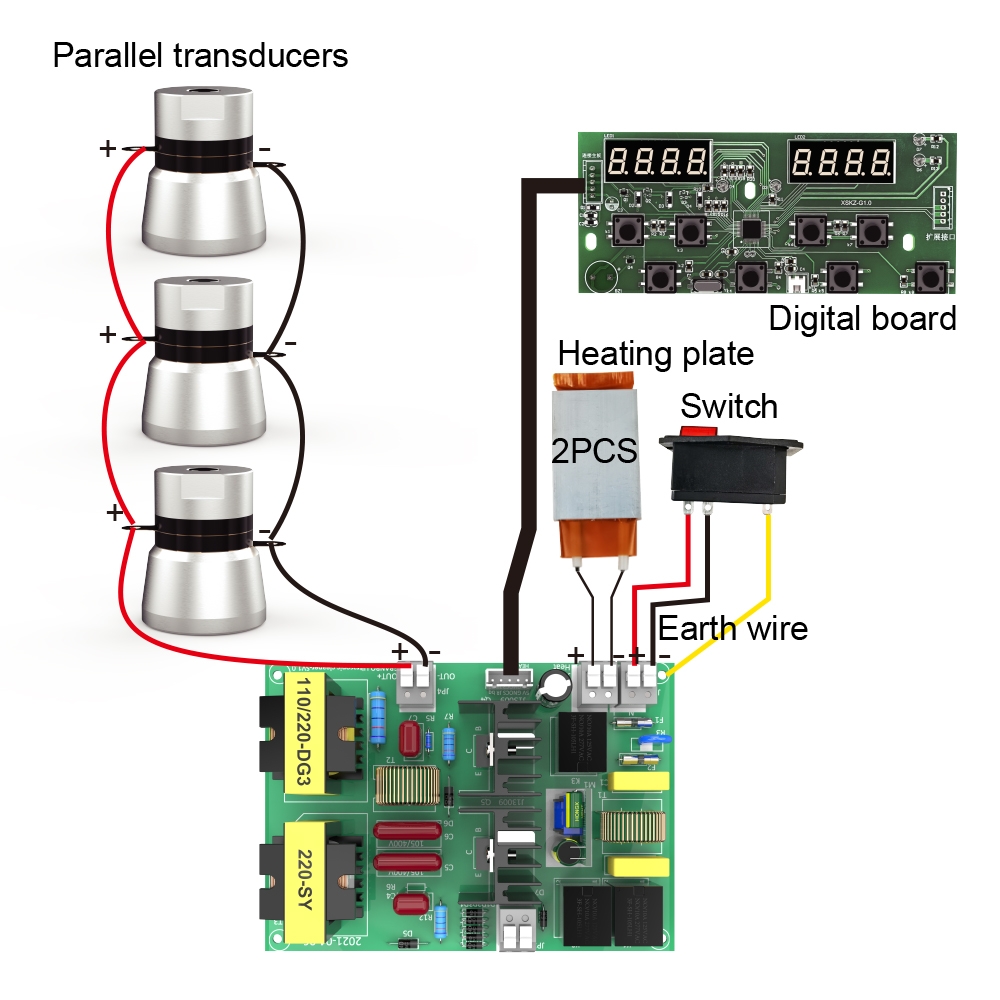

System Wiring Guide & Operating Requirements

1. The circuit board cannot be powered on without load.
2. After installation, it is better not to start the machine for more than 1 minute without any cleaning fluid.
3. The 60W drive board is one transducer and is connected to the terminal of the circuit board. One circuit board and one transducer are used together.
4. The 120W drive board is two transducers and is connected to the terminal of the circuit board. One circuit board and two transducers are used together.
5. The 180W drive board is three transducers and is connected to the terminal of the circuit board. One circuit board and three transducers are used together.
6. OUT + is connected to the positive pole of the transducer, OUT – is connected to the negative pole of the transducer. The power supply L of the drive board is positive and N is negative. Parallel drive plate Lb is positive and Nb is negative. Heating PTC is positive and N is negative. The display board HT is the interface and the display board J1 is the temperature probe interface. Remember not to get it wrong.
   (Note: the voltage at the output terminal of the circuit board is about 400V. Pay attention to safety. It is best to have a leakage protection switch on the input power supply to ensure safety!)

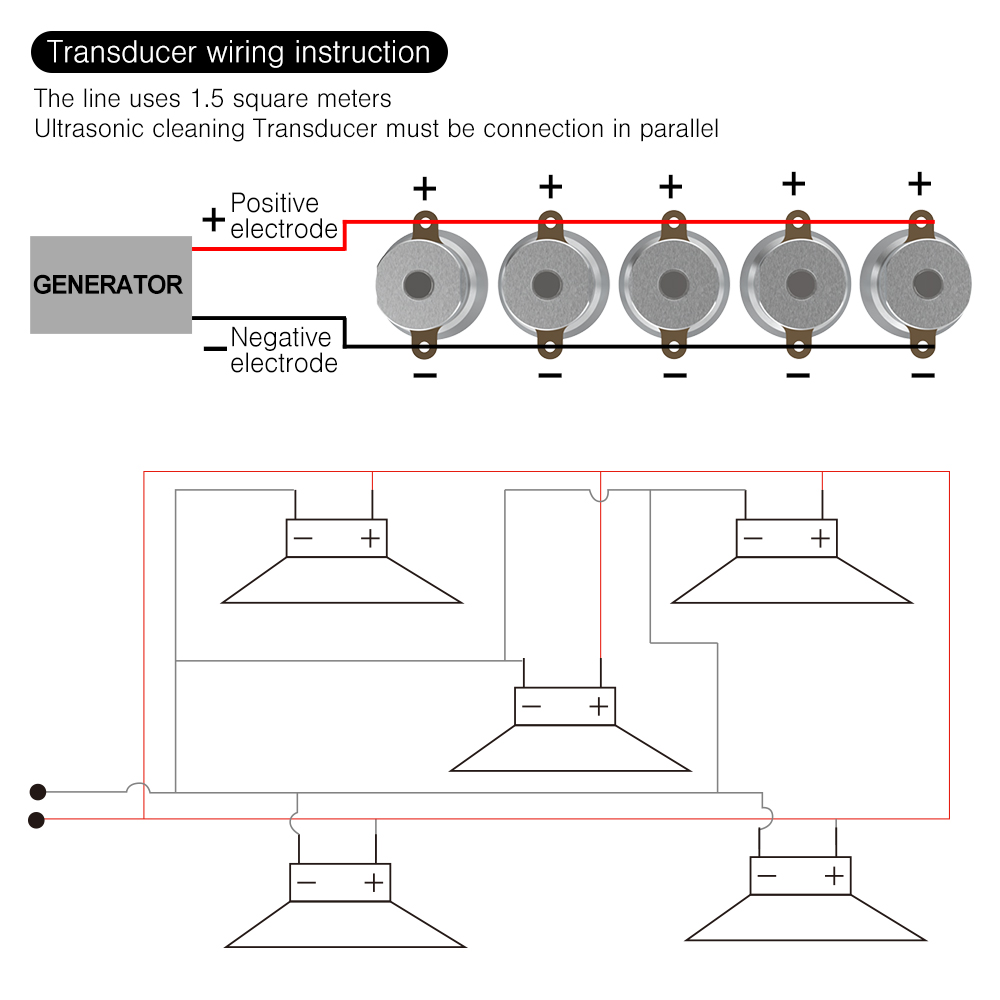

7. Wire Cross-Section: All transducer interconnecting wiring must use 1.5 mm² copper wire.
8. Wiring Polarity: Transducers must be connected in parallel. Connect all positive tabs together to OUT+ and all negative tabs together to OUT-. Connect both heating plates (2 PCS) in parallel across the Heat terminals.

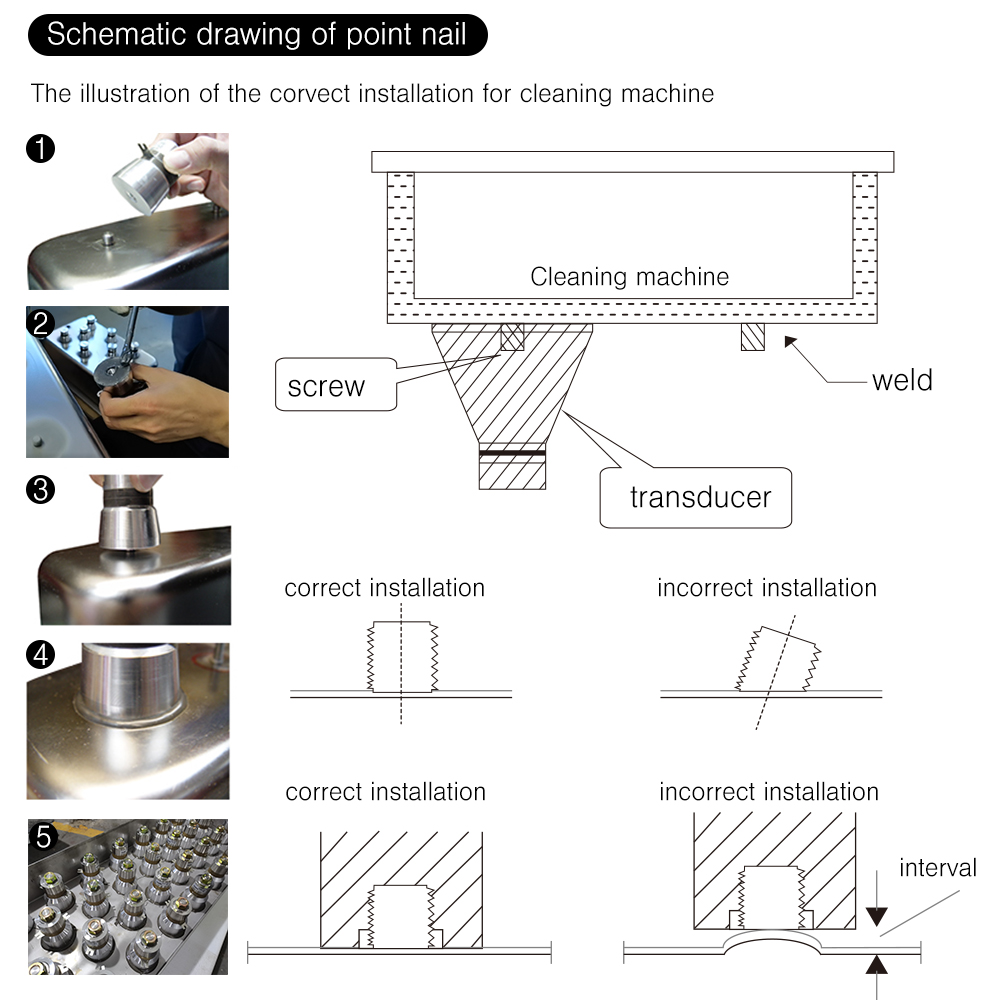

Transducer Mounting and Installation Guide

• Stud Alignment: Welded studs must sit perpendicular (90°) to the bottom surface of the tank. Tilted or skewed studs prevent uniform face-to-tank contact.
• Contact Surface: The bottom of the stainless steel tank must remain flat. Tank surface deformation will leave gaps between the transducer radiating face and the tank bottom, leading to cavitation failure and transducer overheating.
• Adhesive & Torque: Apply high-temperature epoxy adhesive evenly across the radiating contact surface before threading the transducer onto the welded stud, then torque securely into place.
