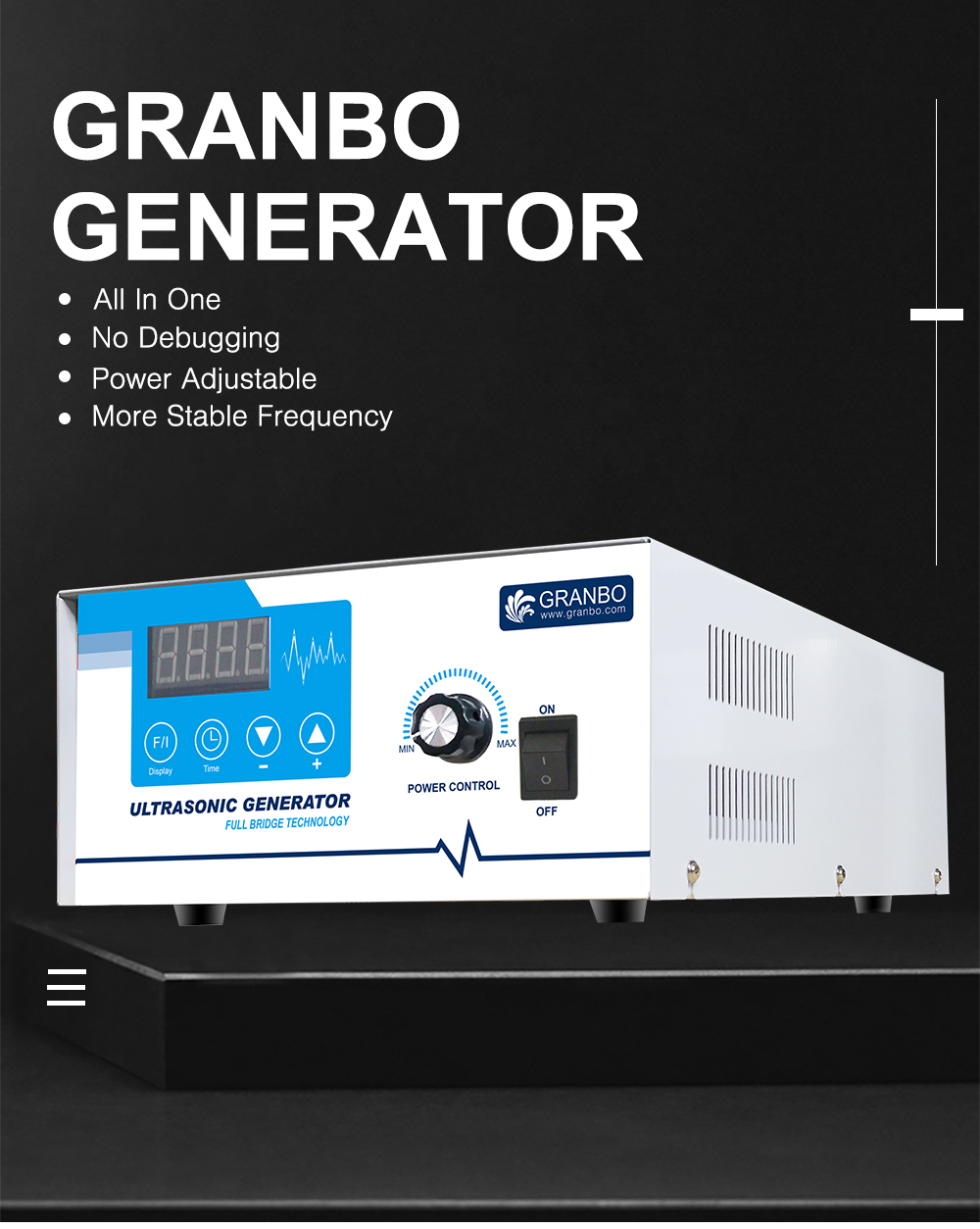

300W-600W 28/40KHz Ultrasonic Generator with Adjustable Power Settings for Versatile Cleaning

The Granbo Digital Ultrasonic Generator provides power conversion for industrial and commercial ultrasonic applications. Built on full-bridge circuit architecture, the unit requires no manual debugging and delivers steady frequency output with adjustable power regulation.

• All-in-One Design: Self-contained drive system ready for production line and tank installation.
• No Debugging Required: Factory pre-tuned for rapid commissioning.
• Adjustable Power Output: Linear potentiometer control for precise energy delivery.
• Stable Frequency Output: Consistent ultrasonic oscillation under changing tank conditions.

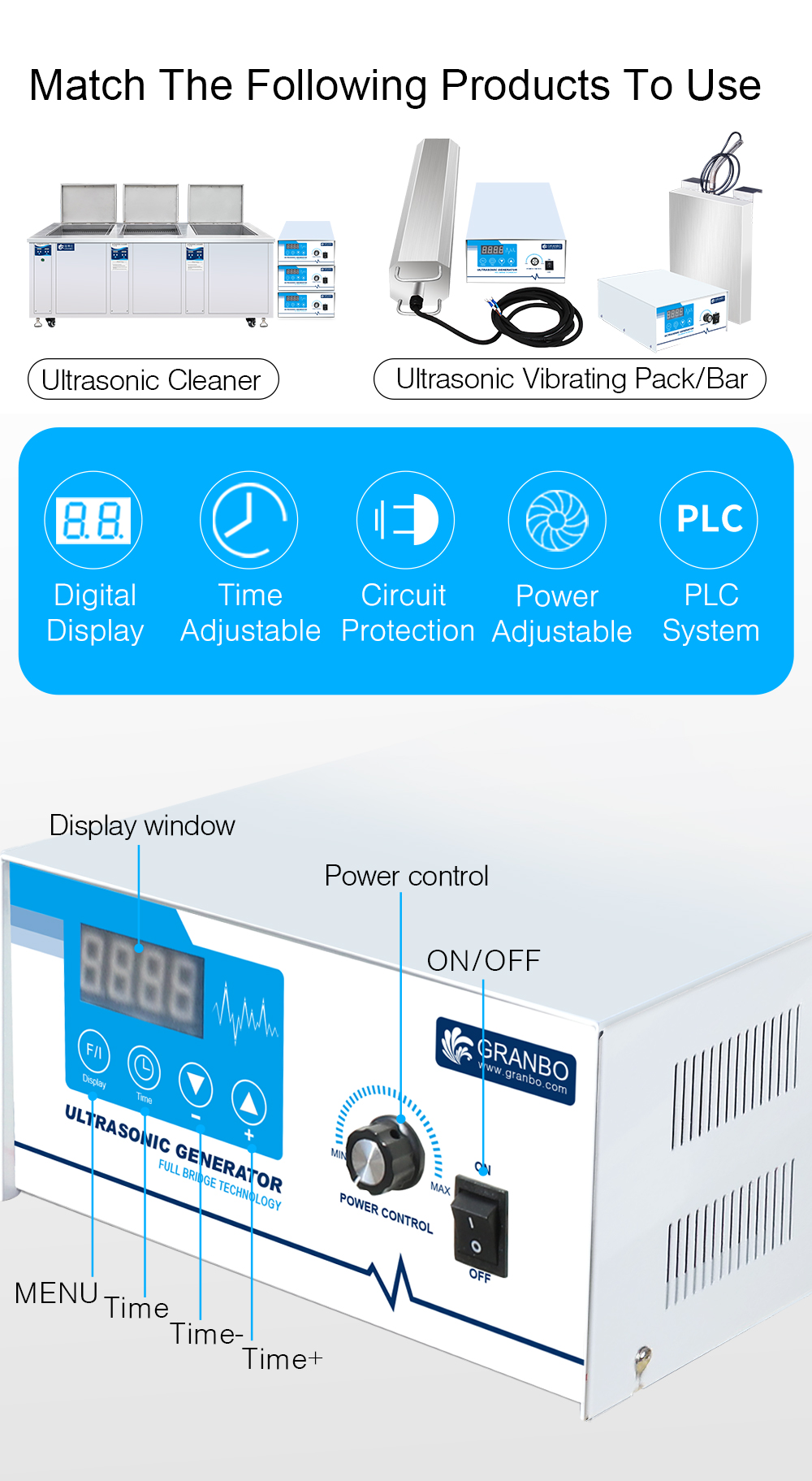

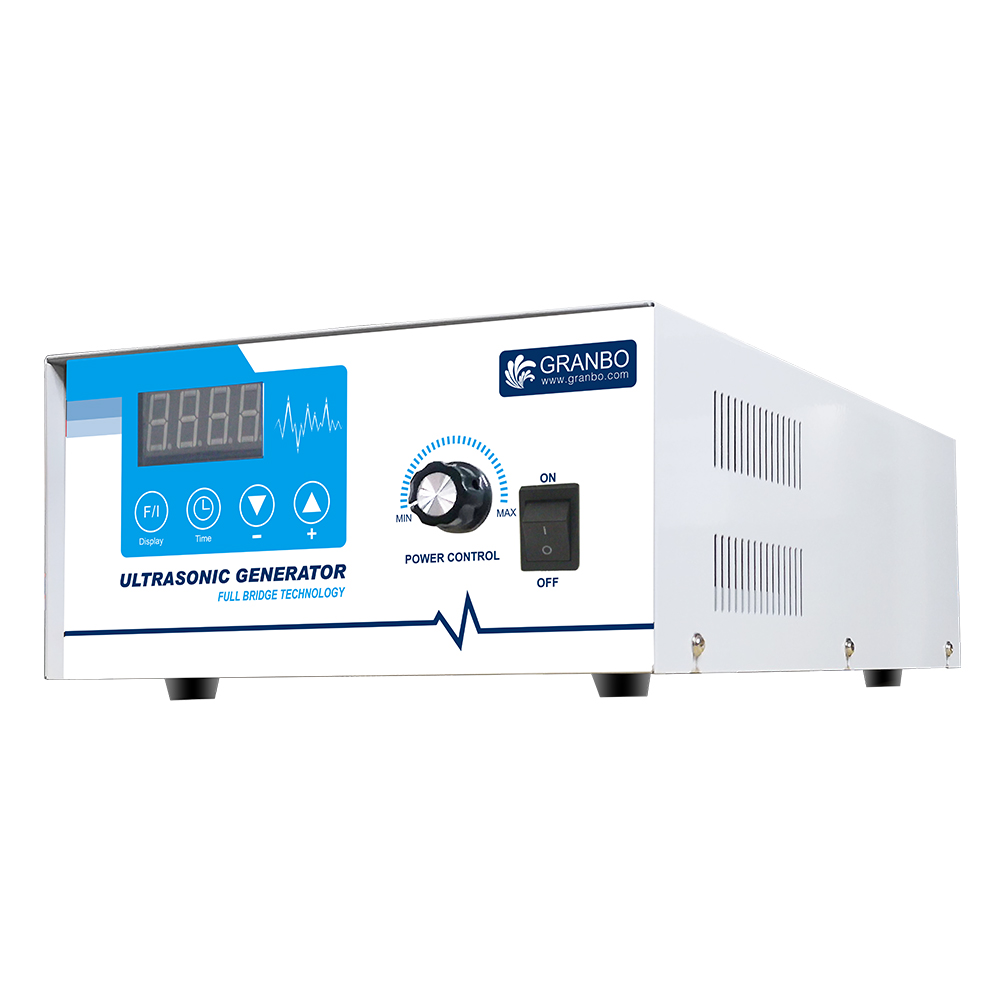

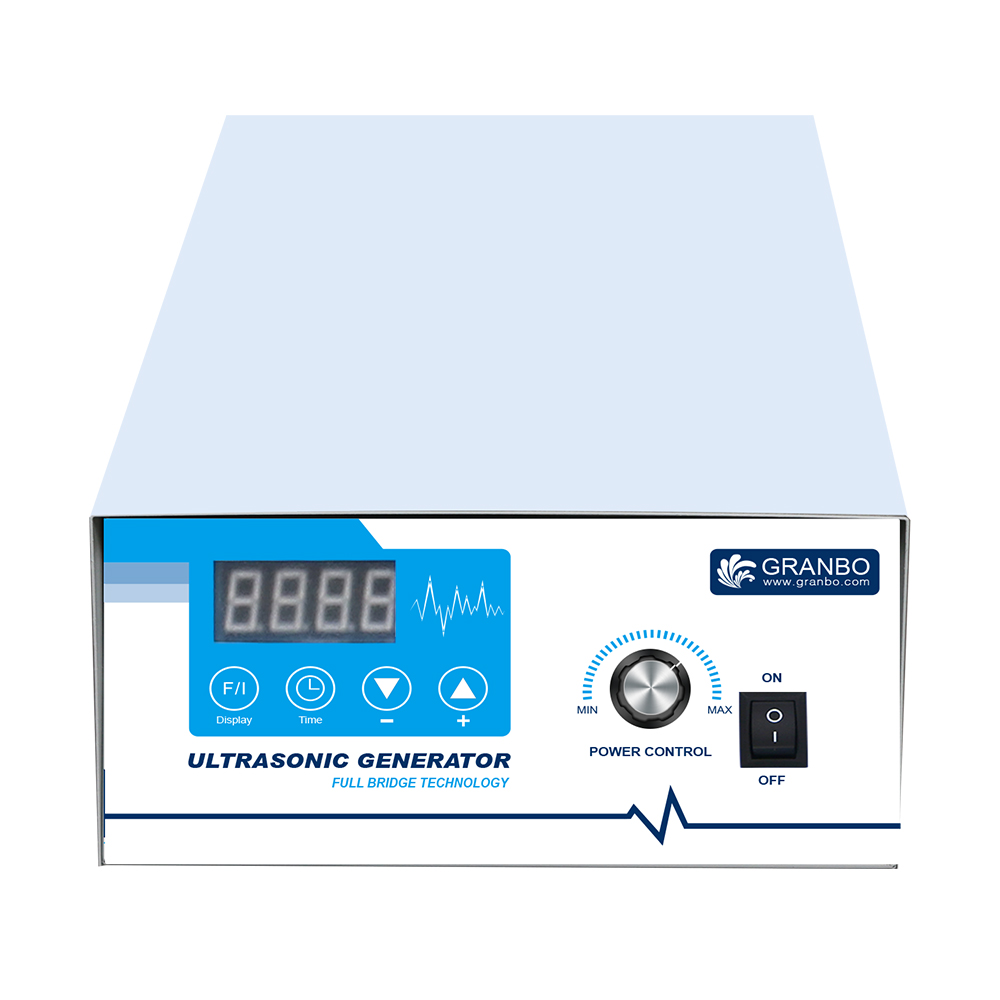

Control Panel & Operation Interface

• Display Window: Digital readout showing operating frequency, output current, and timer status.
• Power Control: Rotary knob for stepless output power regulation from MIN to MAX.
• ON / OFF: Rocker switch for primary power activation and shutdown.
• MENU (F/I Display): Selector button to switch digital display parameters between frequency and current.
• Time: Dedicated button to access the cleaning timer setting.
• Time-: Decrement button to reduce operating cycle time.
• Time+: Increment button to increase operating cycle time.

Compatible Systems & Integration

The generator powers multiple industrial transducers and interfaces with external control platforms:

• Ultrasonic Cleaners: Multi-slot and benchtop industrial cleaning tanks.
• Ultrasonic Vibrating Packs / Bars: Immersible transducer boxes and submersible ultrasonic rods.
• PLC Automation Systems: External control input for automated production lines.
• Circuit Protection: Built-in safeguards protect components during electrical fluctuations.

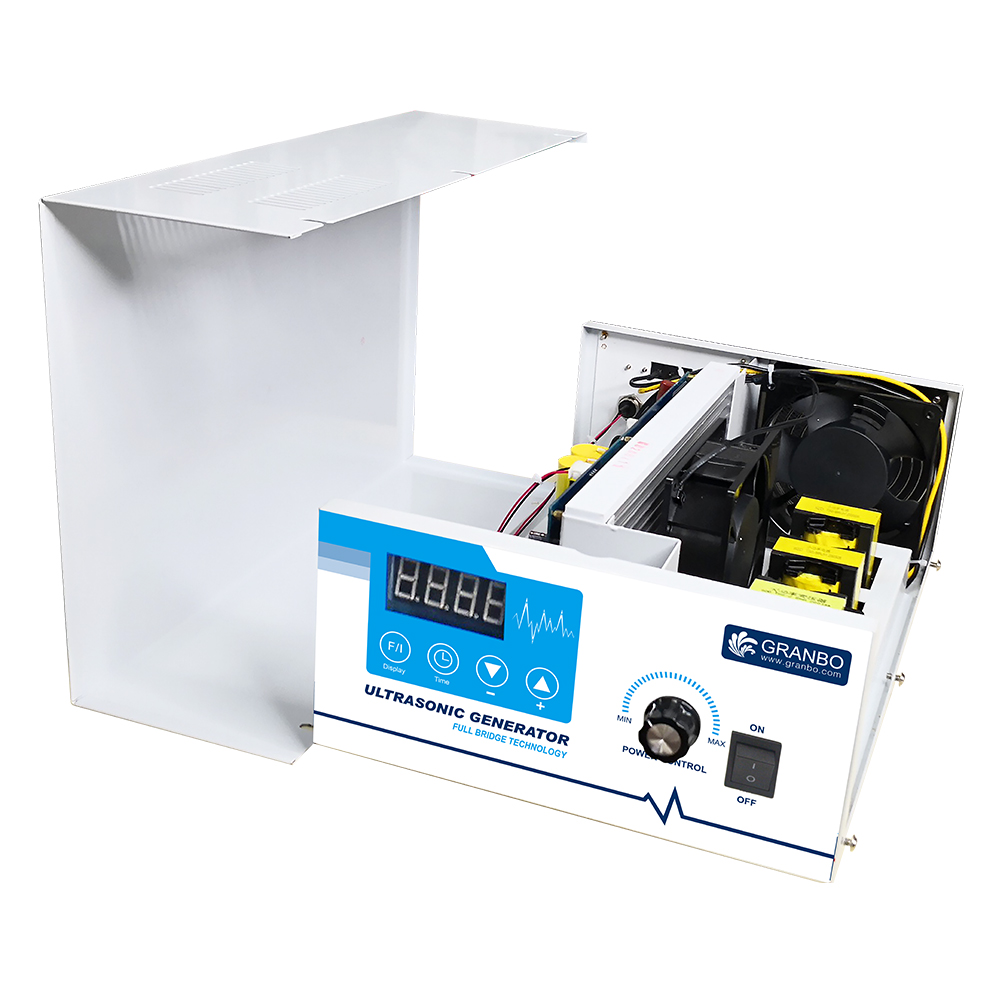

Internal Architecture & Thermal Design

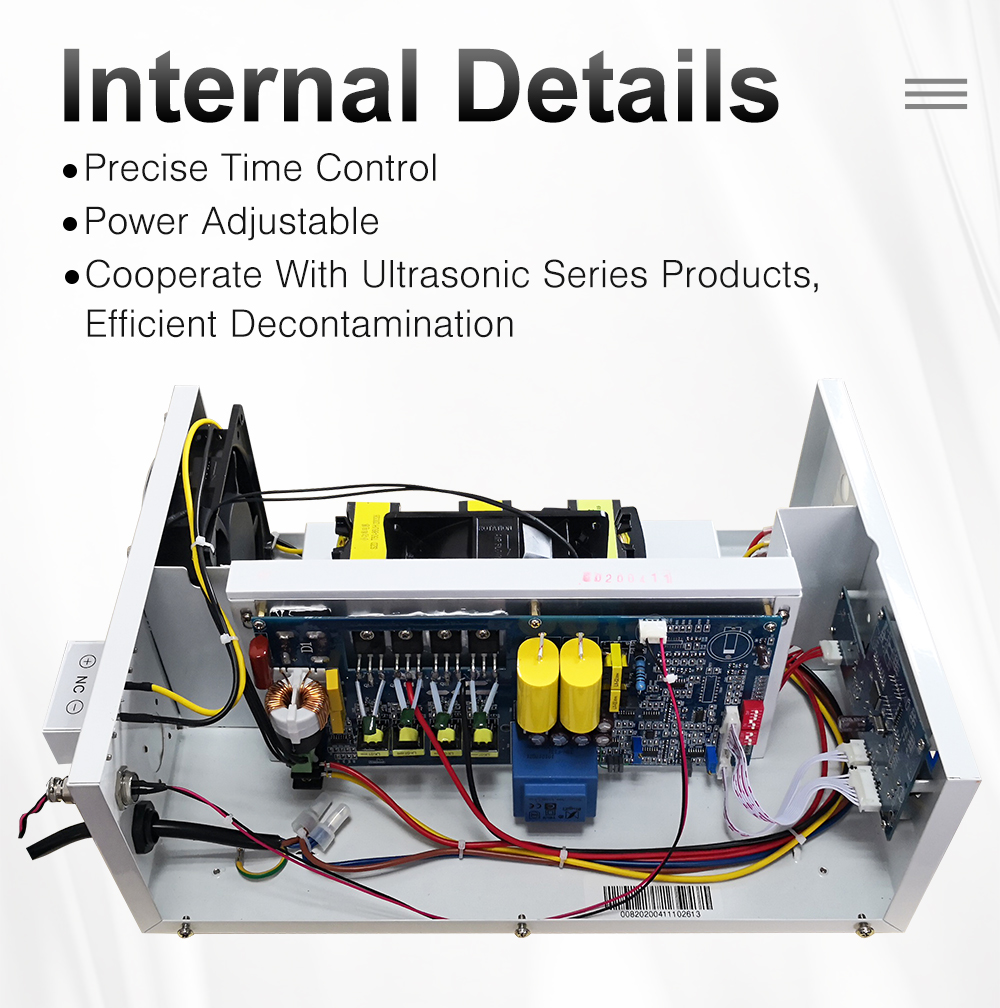

Internal Details

• Precise Time Control: Integrated digital timer board regulates cycle duration.
• Power Adjustable: Drive board handles output regulation across load states.
• Multi-Transducer Driving: Delivers coordinated energy to ultrasonic series equipment for component decontamination.

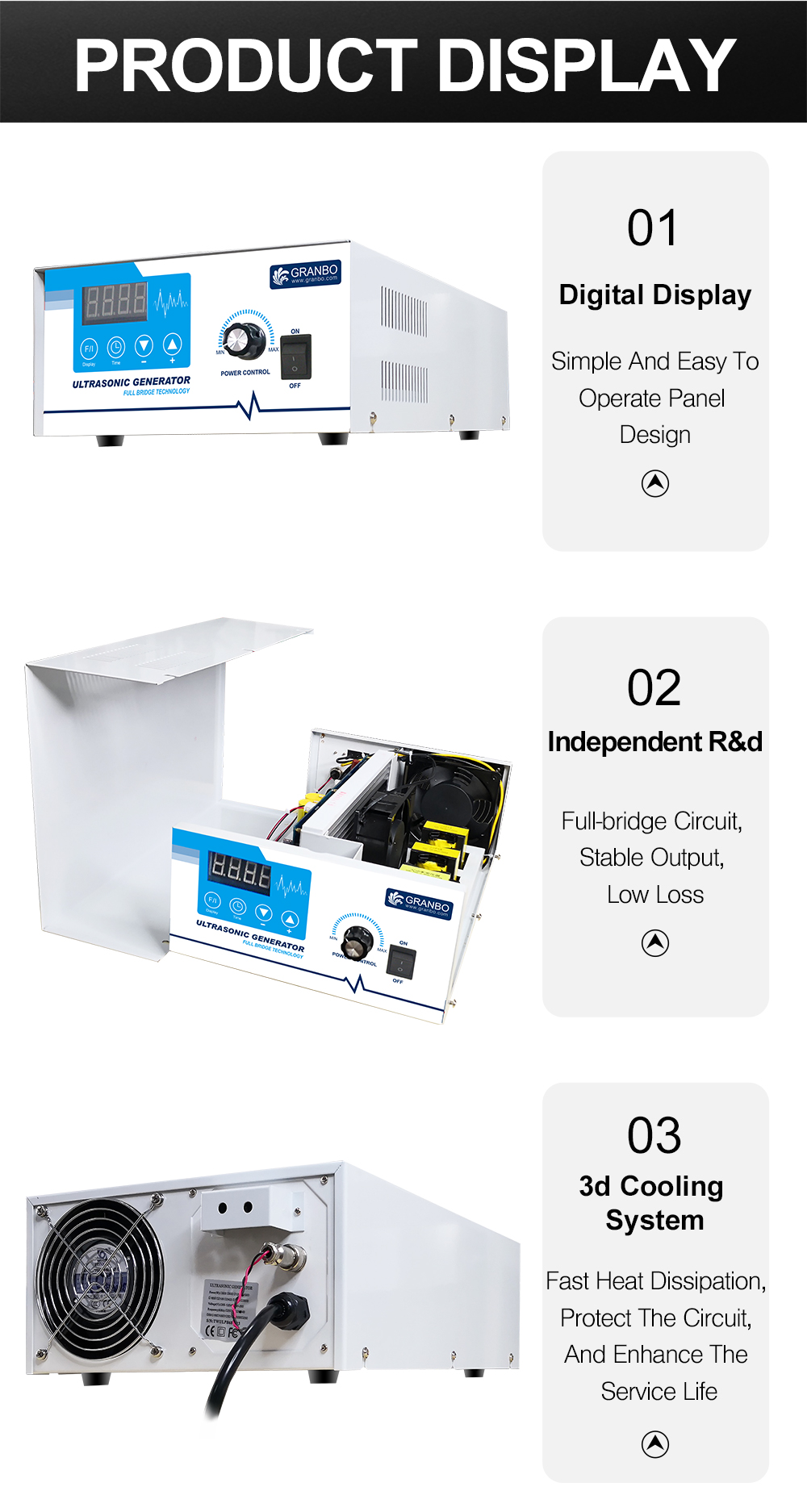

Core Construction

• 01 Digital Display: Simplified front panel layout designed for straightforward operation.
• 02 Independent R&D: Proprietary full-bridge circuit topology ensures low power loss and stable electrical output.

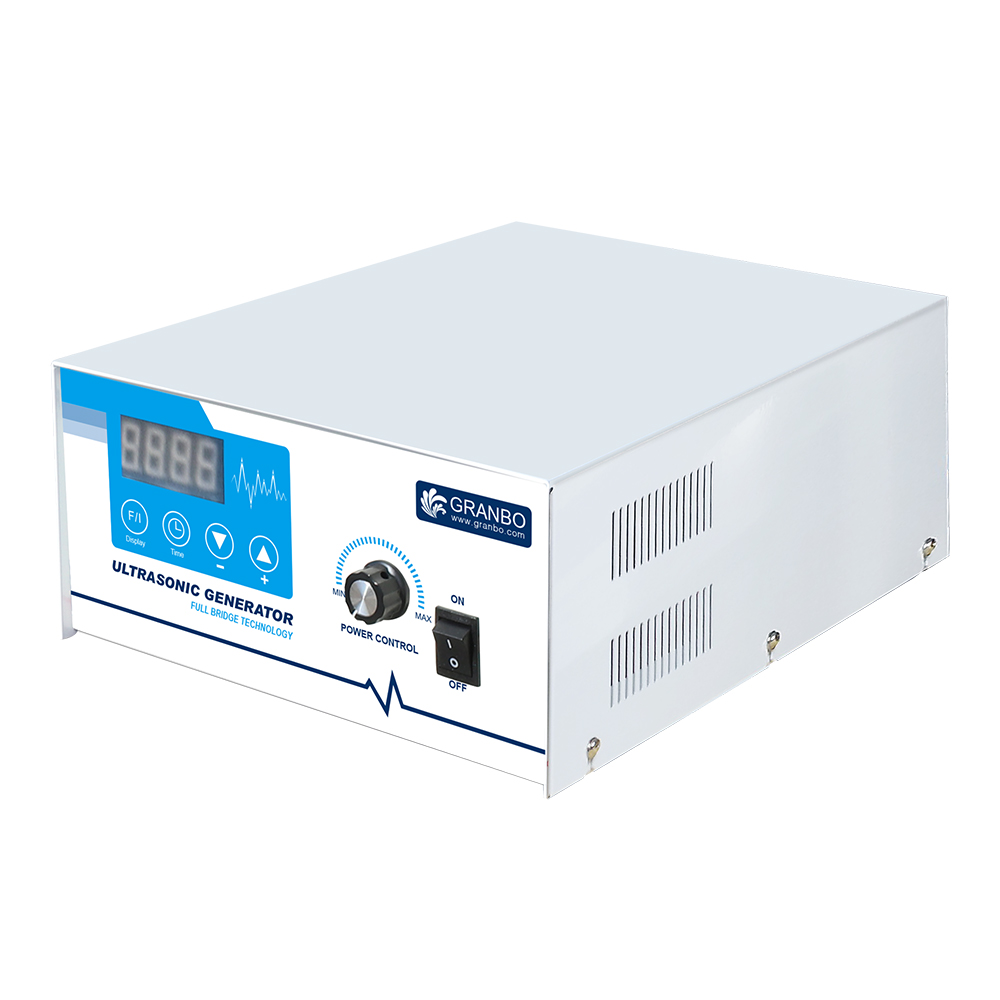

• 03 3D Cooling System: High-volume cooling fan paired with louvered side vents dissipates heat directly, protects the internal circuit, and extends equipment service life.

Technical Specifications

Applications

• Precision parts cleaning in electronics, medical, and optics manufacturing
• Immersible transducer boxes and bar-type ultrasonic vibrating rods
• Laboratory ultrasonic cleaning, degassing, and sample testing
• Nanomaterial dispersion, liquid emulsification, and ultrasonic extraction

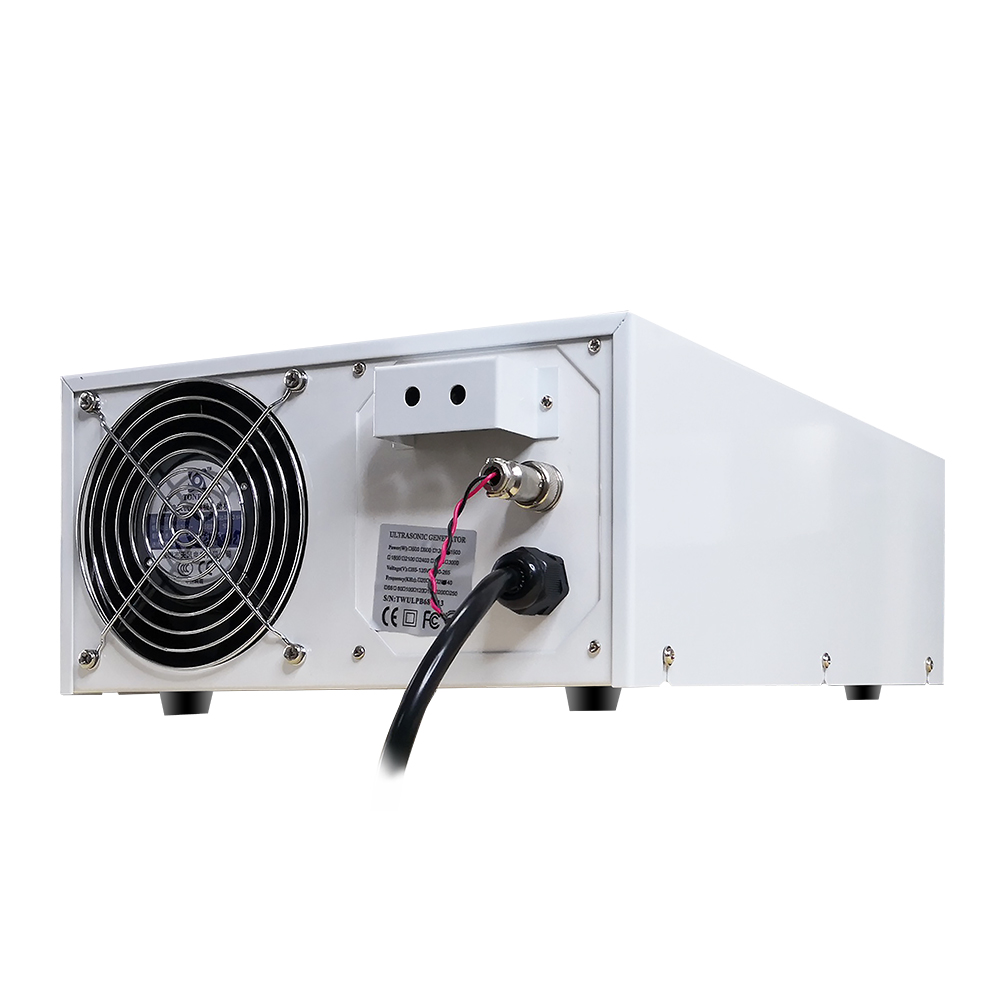

Wiring & Installation Instructions

• Power Input: Connect the industrial power cord to the marked AC terminal (100V-120V ~ 60Hz or 220V-240V ~ 50Hz according to unit rating).
• Transducer Output Port: Connect the ultrasonic immersible box, plate, or bar array to the high-frequency output terminal.
• Grounding (GND): Connect the ground line directly to the designated chassis grounding terminal to prevent electrical leakage.
• Remote Control Port (Optional): Use the interface port (DB9 or industrial connector) to connect external PLC lines for remote ON/OFF, frequency selection, and power output adjustment.
• Cooling Clearance: Maintain open space around all side and rear ventilation louvers. Do not operate within an unventilated sealed cabinet.

Packing List & Packaging

Box Contents:

• 1 x Portable Ultrasonic Generator
• 1 x Industrial-Grade Power Cord
• 1 x Instruction Manual
• 1 x Warranty Card

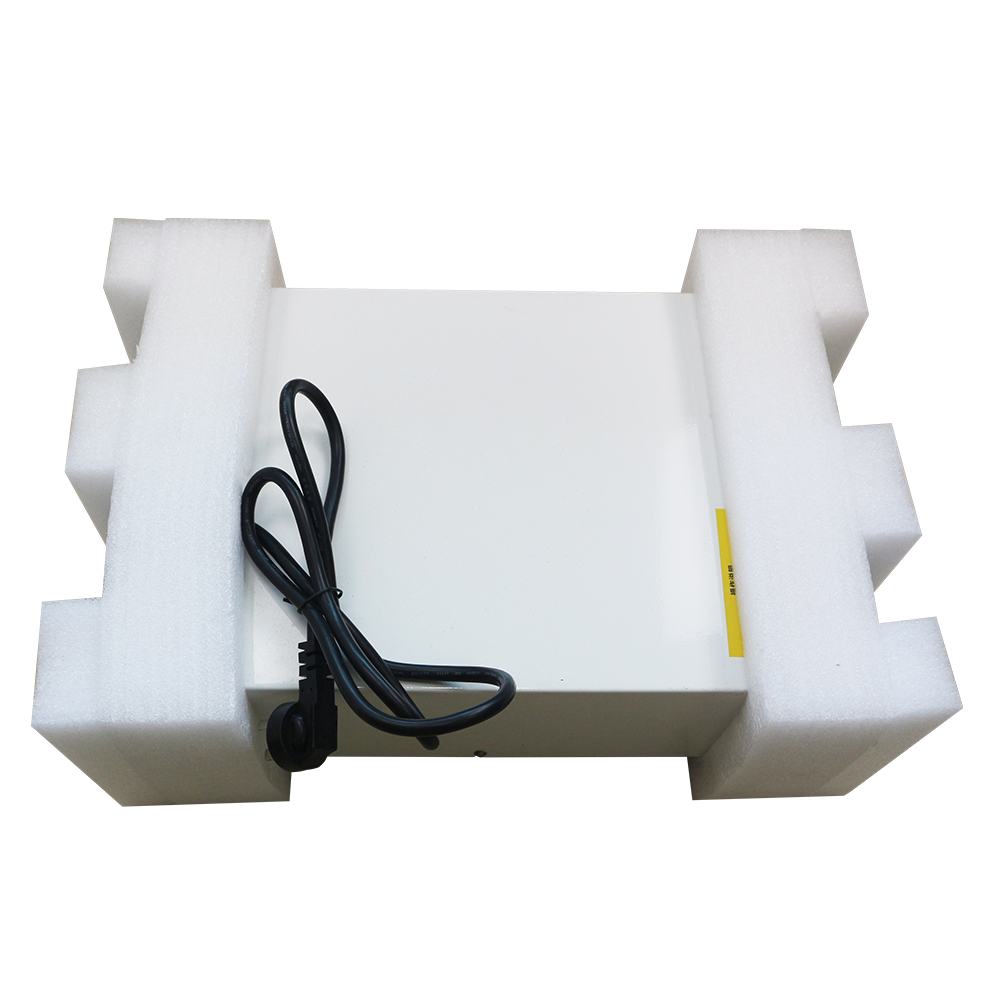

Packaging Specification:

• Internal custom-molded high-density foam cushioning inside a heavy-duty corrugated export shipping carton.

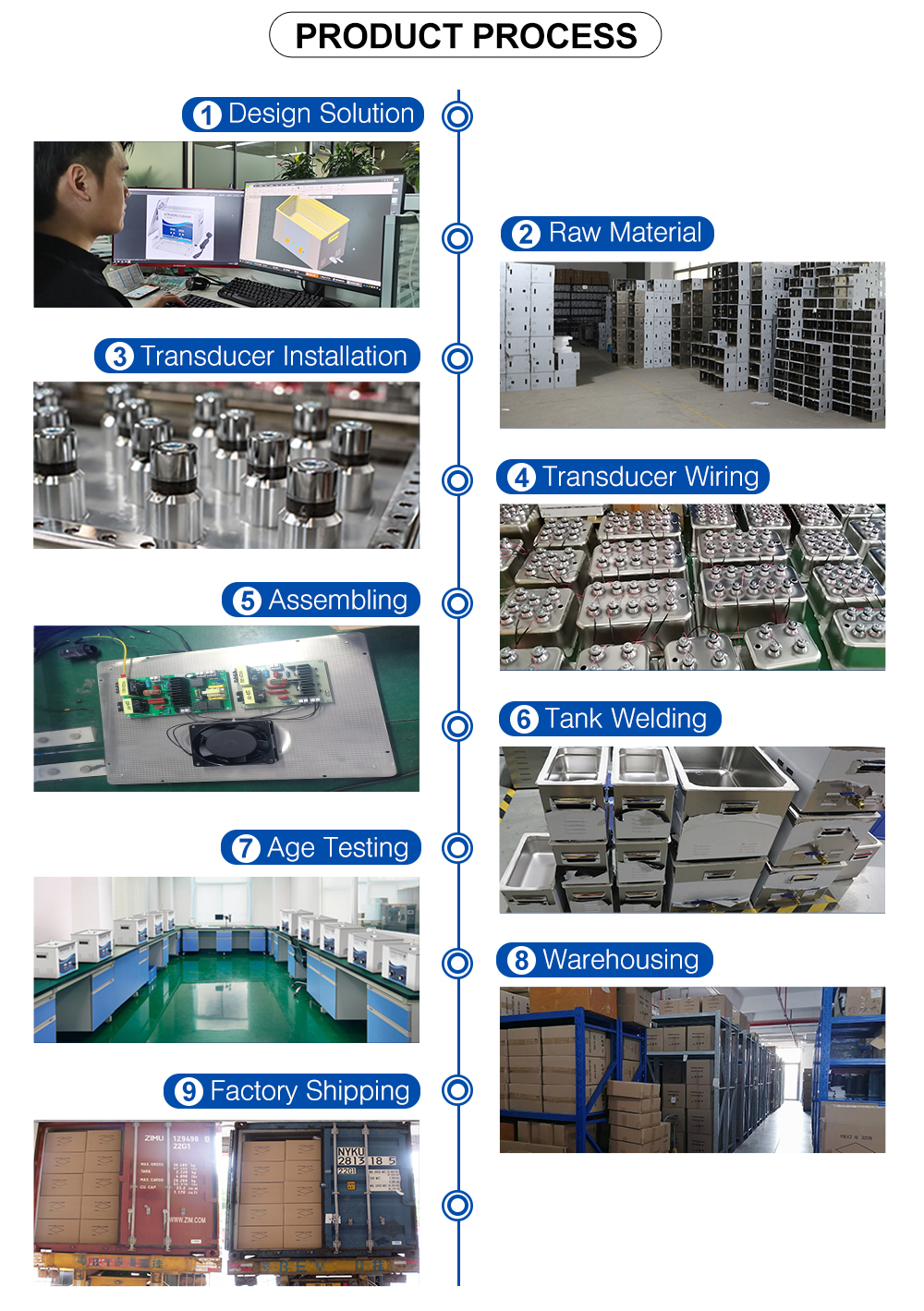

Manufacturing & Quality Process

Standard Manufacturing Flow:

1. Design Solution: Engineering review and product configuration.
2. Raw Material: Sourcing and inspection of sheet metal and components.
3. Transducer Installation: Mechanical mounting on cleaning tanks and boxes.
4. Transducer Wiring: Point-to-point harness assembly.
5. Assembling: Power board, transformer, and chassis assembly.
6. Tank Welding: Structural assembly of compatible cleaning vessels.
7. Aging Test (Age Testing): Electrical burn-in and continuous load stress testing.
8. Warehousing: Quality-approved inventory storage.
9. Factory Shipping: Export container packaging and freight dispatch.

Engineering & Corporate Profile

Granbo R&D Team

• R&D Team: In-house electronic and ultrasonic hardware engineering.
• 3D Drawing: Structural CAD chassis and component packaging models.
• Circuit Board Design: PCB layout and schematic routing for full-bridge drive electronics.
• 2D Drawing: Mechanical fabrication tolerances and assembly blueprints.

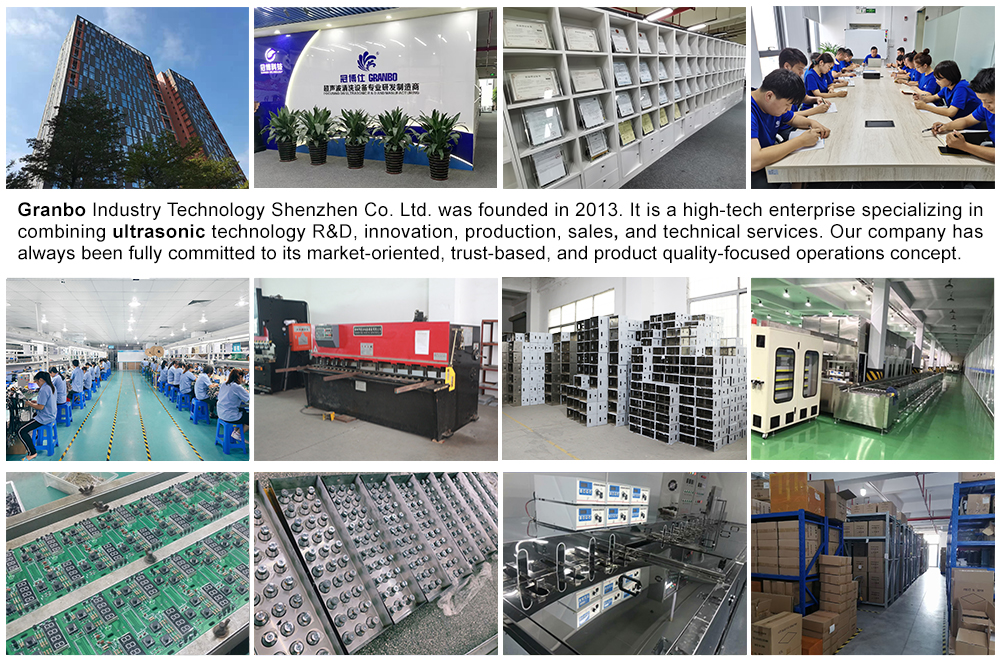

About Granbo

Granbo Industry Technology Shenzhen Co. Ltd. was founded in 2013. It is a high-tech enterprise specializing in combining ultrasonic technology R&D, innovation, production, sales, and technical services. The company maintains an operational model focused on market orientation, commercial trust, and product manufacturing quality.
