150W 28/40kHz SUS304 Cylindrical Immersible Ultrasonic Transducer Rod for Laboratory Emulsion Extraction and Sonochemical Processing

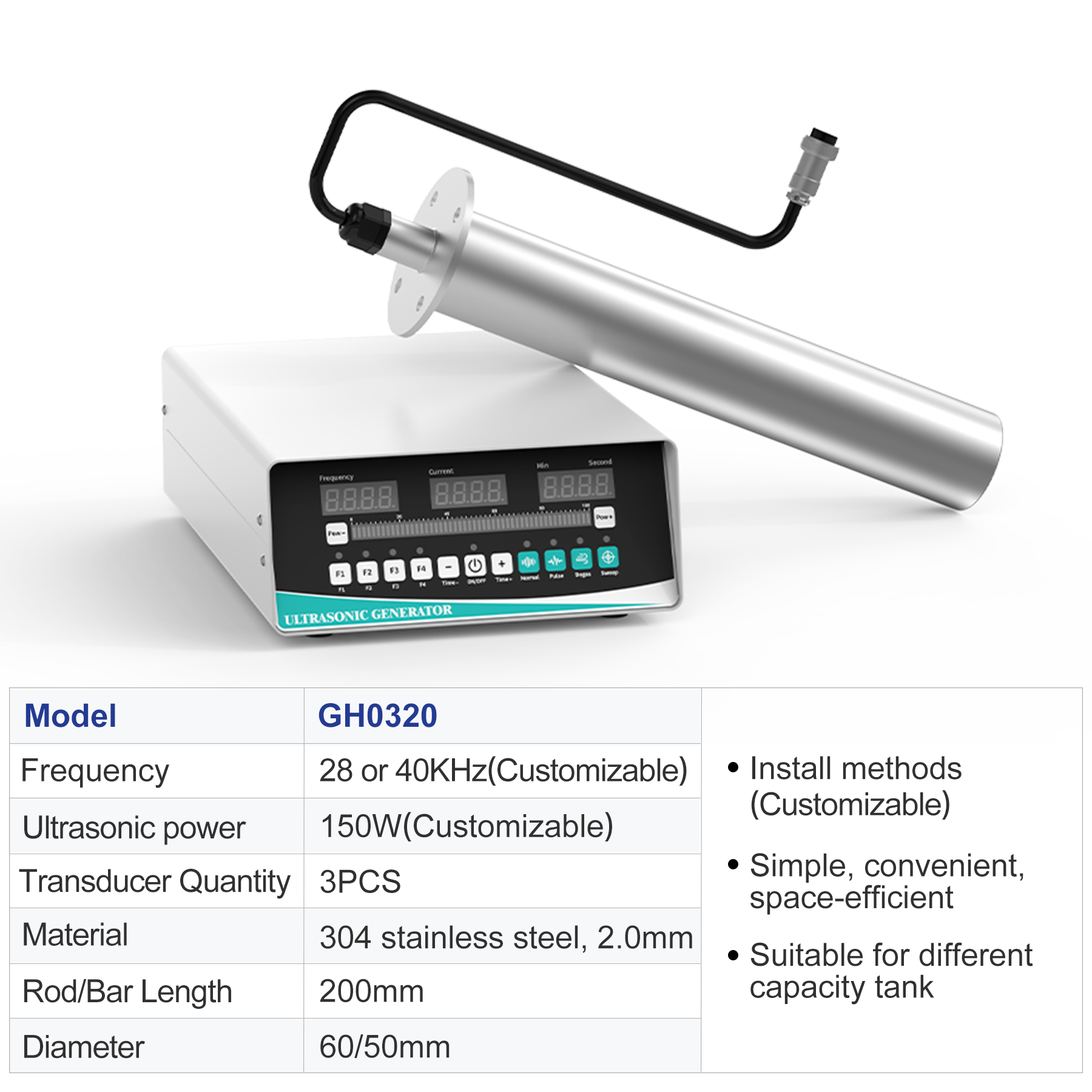

Cylindrical Immersible Ultrasonic Transducer Rod (Model: GH0320)

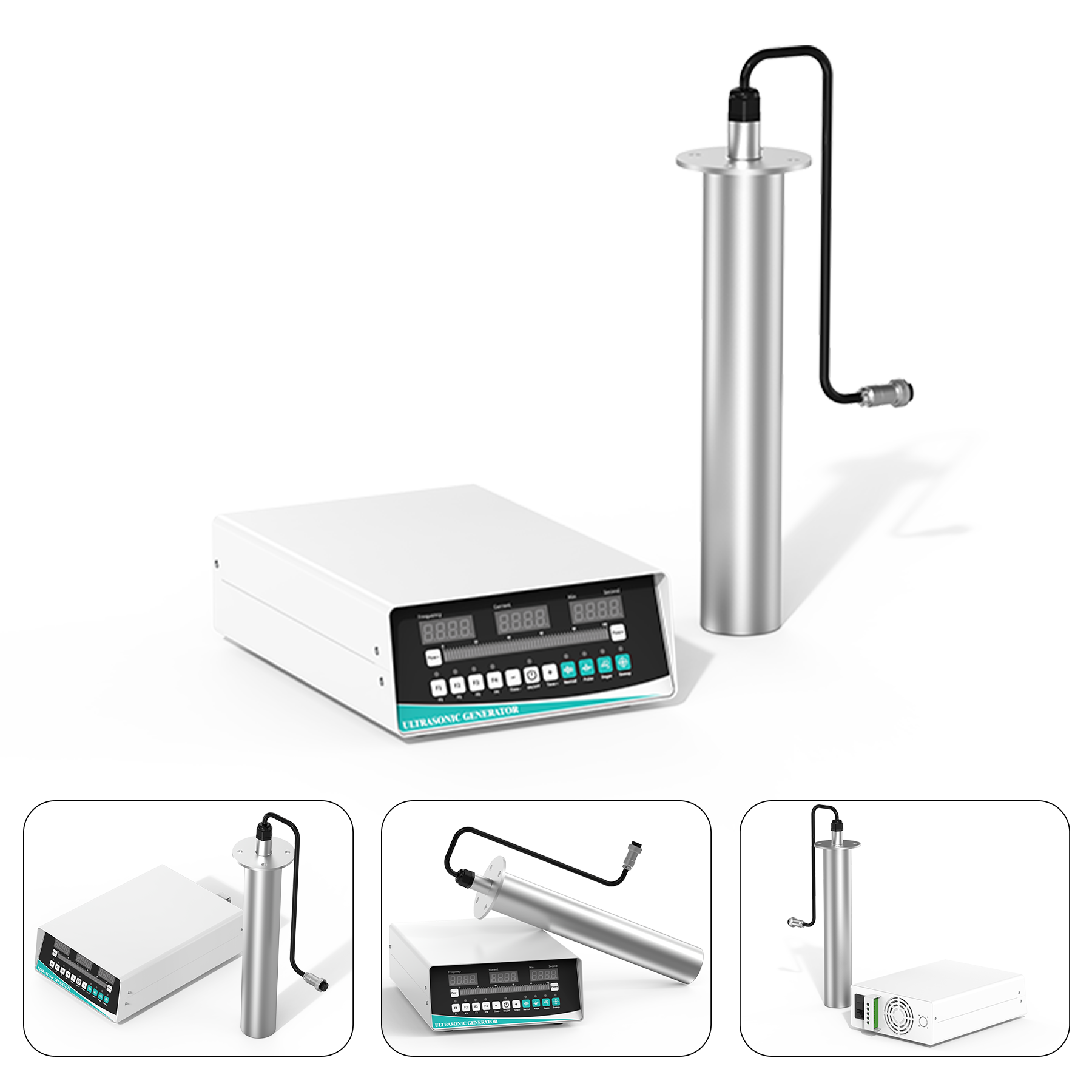

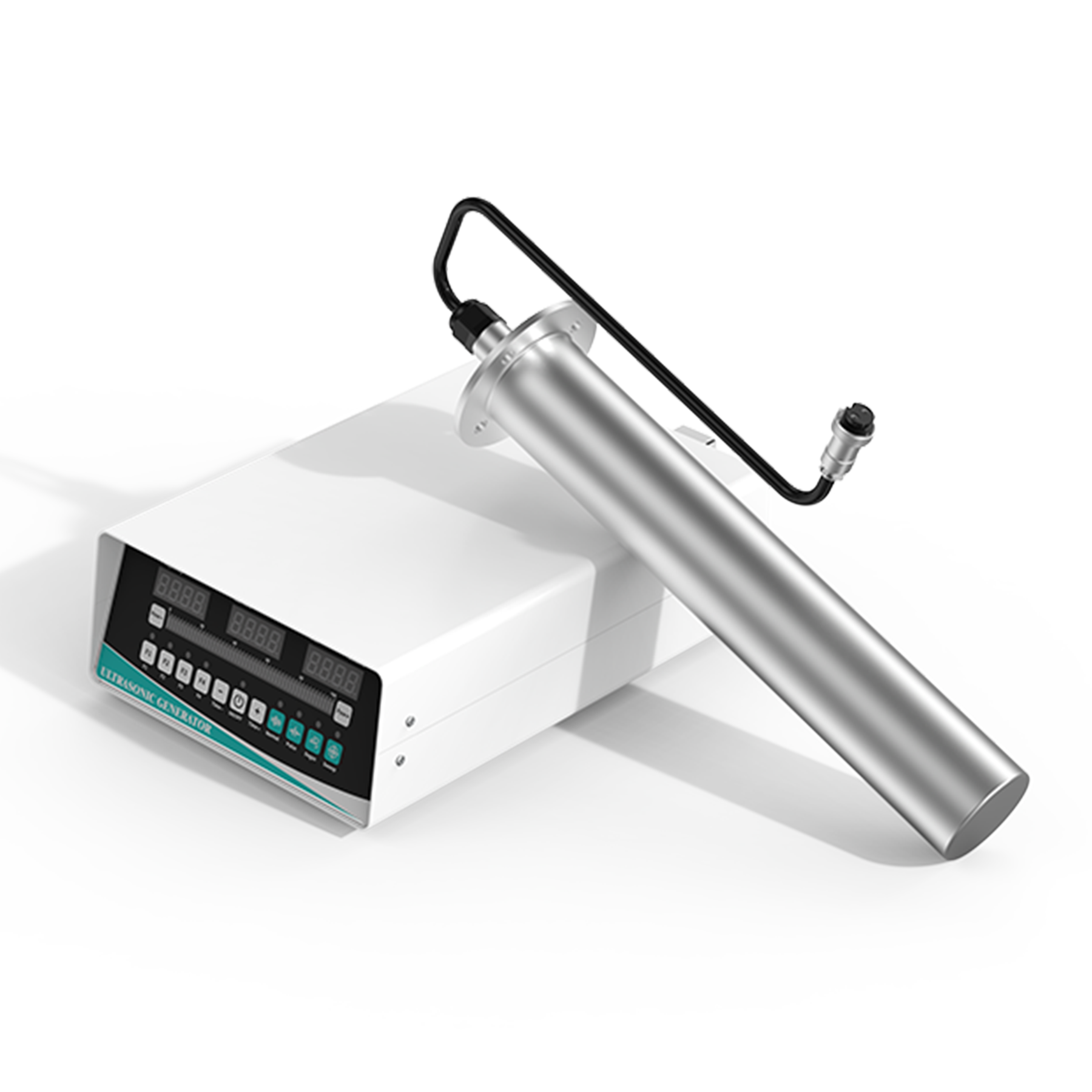

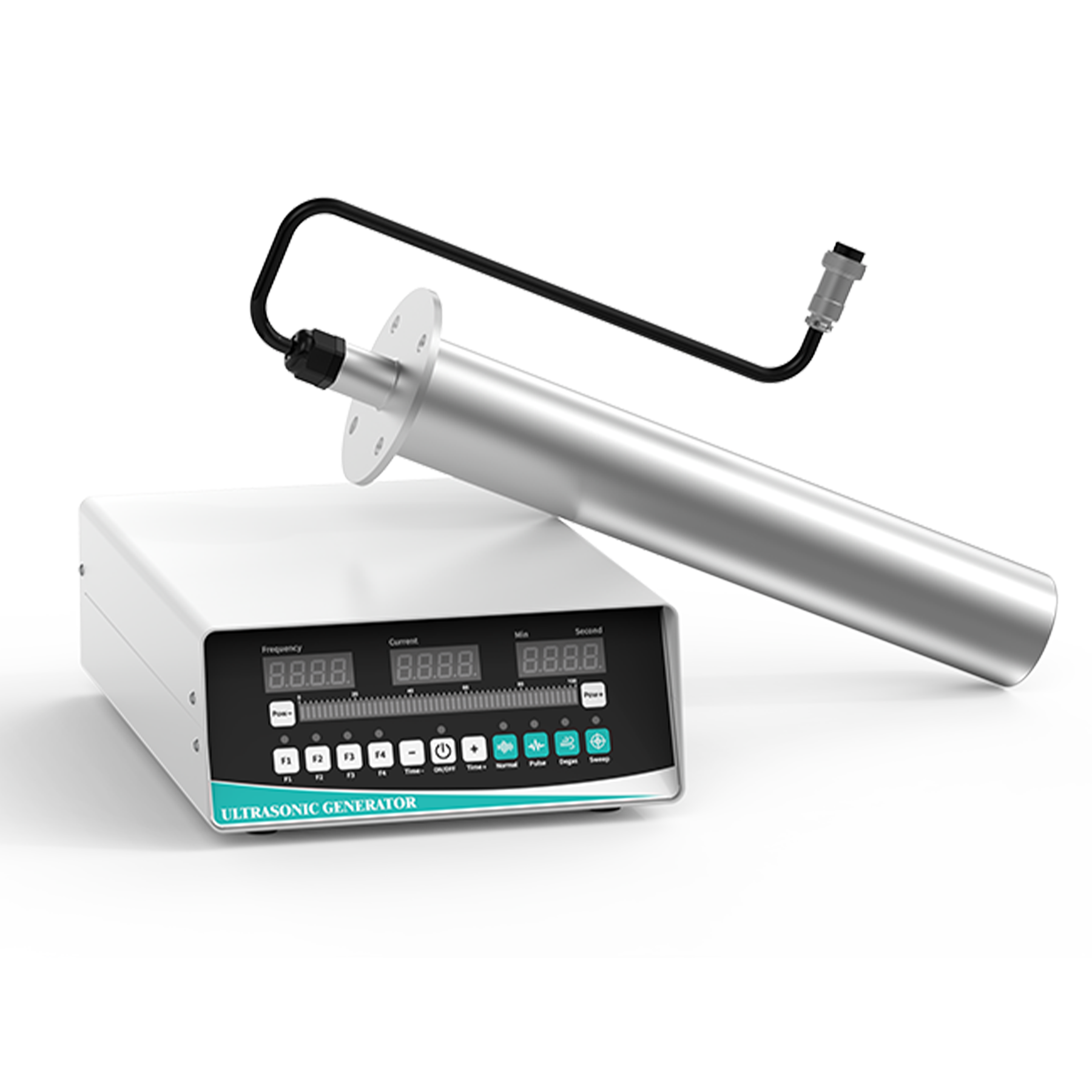

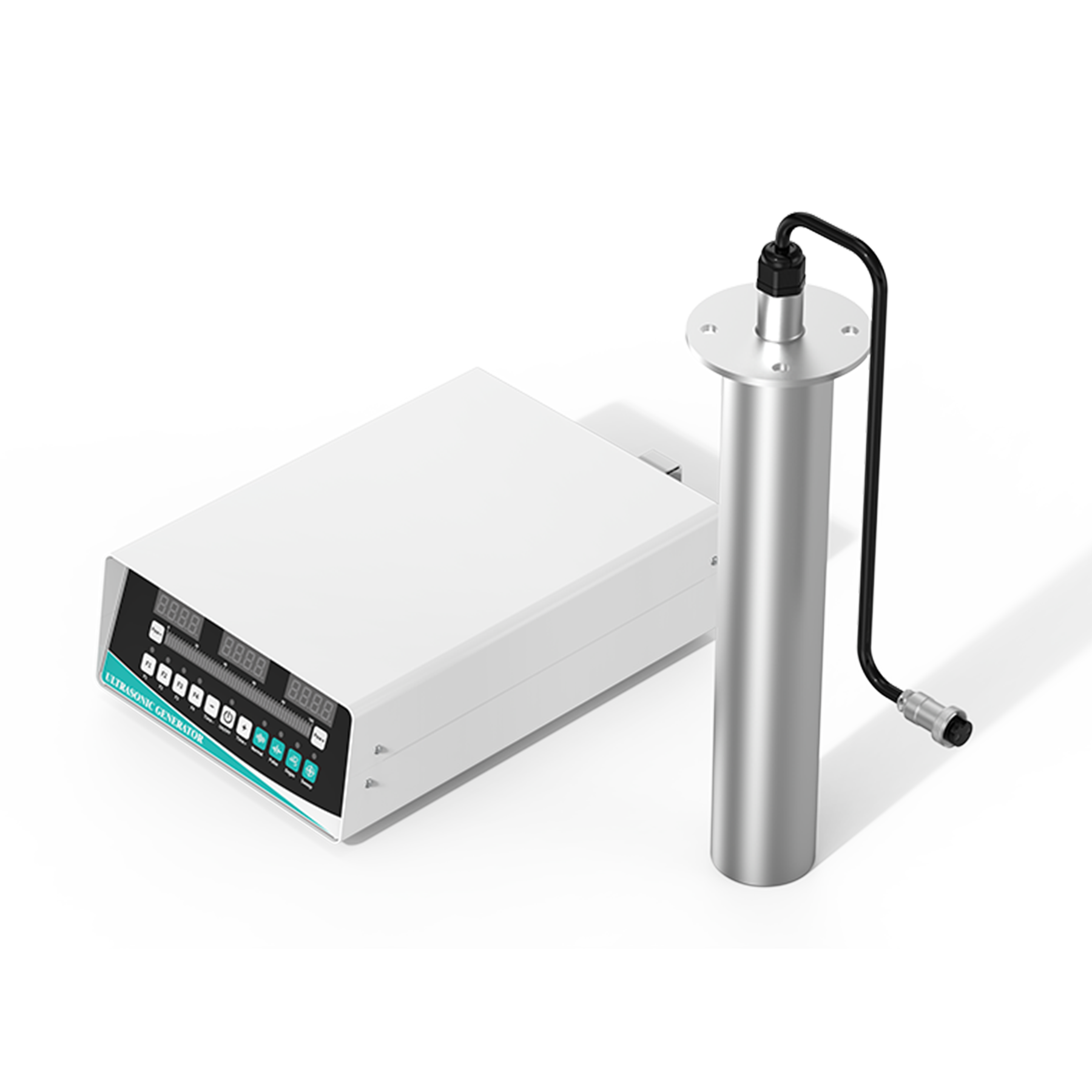

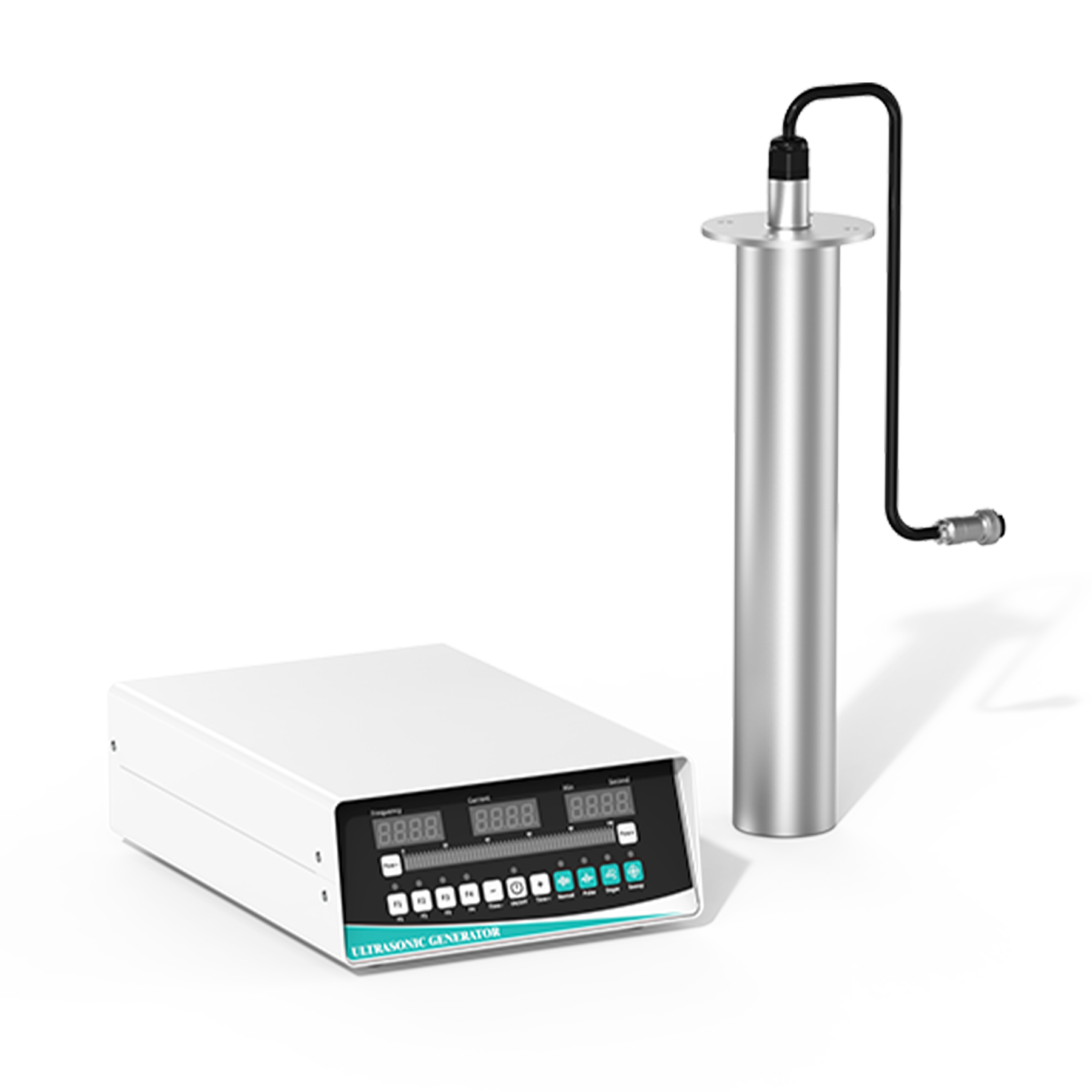

360° Radial Submersible Ultrasonic System with Digital Generator

Product Highlights

• 360° Radial Cavitation: Emits acoustic energy evenly in all directions, eliminating blind spots found in conventional flat transducer boxes.
• Compact Immersion Design: Easily installed in existing tanks, narrow reaction vessels, or cleaning pipelines without occupying excess bath volume.
• Adjustable Output: External digital generator allows manual power regulation to suit different cleaning and processing needs.
• Durable Construction: Heavy-duty stainless steel tube with precision-welded mounting flange for reliable immersion sealing.

Technical Specifications

Frequency & Mounting Options

Frequency Selection

• 28 kHz (Ø 60 mm Rod): High cavitation intensity. Suitable for heavy grease, carbon deposits, hardware castings, and coarse industrial degreasing.
• 40 kHz (Ø 50 mm Rod): Fine cavitation density. Ideal for precision components, electronic parts, blind holes, delicate substrates, and liquid defoaming.

Mounting Orientations

• Top Mount: Suspended vertically from tank covers or brackets for quick removal and maintenance.
• Bottom Mount: Fixed to the bottom of the tank to project acoustic energy upward.
• Side Mount: Mounted horizontally through tank sidewalls via the flange.

Common Applications

• Industrial Cleaning: Deep degreasing, rust removal, and blind-hole cleaning for hardware, engine components, and precision molds.
• Liquid Defoaming & Degassing: Accelerating bubble elimination in resins, coatings, cosmetics, and liquid solutions.
• Emulsification & Dispersion: Homogenizing immiscible liquids and breaking up agglomerated powders in liquids.
• Extraction: Accelerating mass transfer and botanical active component extraction in reaction tanks.

Operating Instructions & Precautions

1. Submersion Required: The vibrating section of the rod must be completely immersed in liquid before turning on the power. Dry running is strictly prohibited.
2. Part Clearance: Maintain at least 2 mm (≥ 2 mm) clearance between workpieces/baskets and the rod surface to prevent surface wear.
3. Chemical Solution: Suitable for neutral, mild alkaline, or standard cleaning agents. For strong acid/alkali solutions, please select SUS316L or titanium.
4. Duty Cycle: For continuous extended runs, allow a brief pause of at least 3 minutes between long work cycles to ensure transducer longevity.

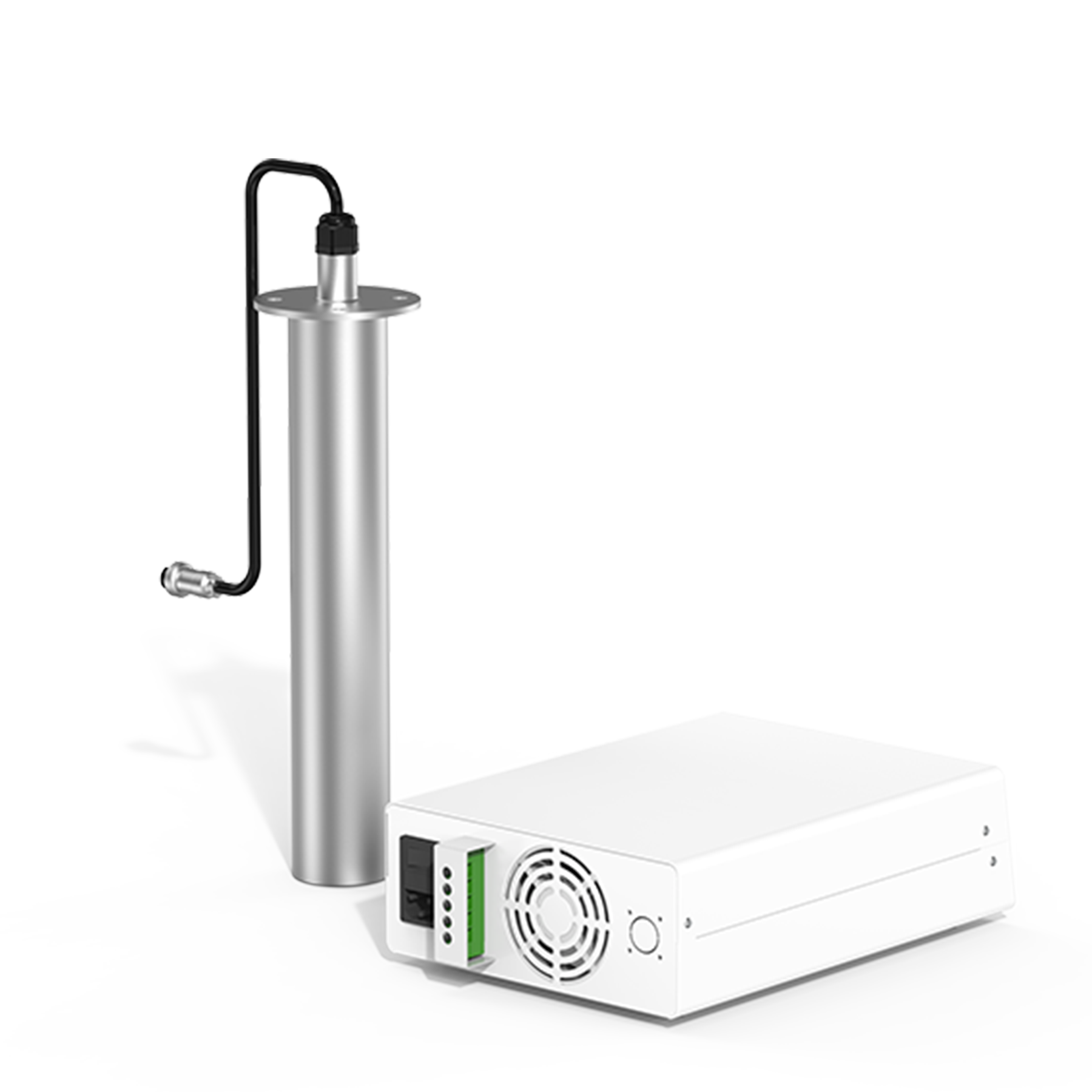

5. Generator Placement: Keep the generator in a dry, well-ventilated area away from steam, liquid splashing, and corrosive chemical vapors.

About Granbo

Granbo Technology Industrial Shenzhen Co., Ltd. is a professional manufacturer of industrial ultrasonic cleaning and liquid processing equipment. We offer direct factory supply, standard and custom submersible transducer rods, multi-frequency systems, and complete OEM/ODM solutions for global clients.
