80/120kHz Switchable Dual-Frequency Ultrasonic Cleaner 4.5L with 0-200W Adjustable Power for Optical Components and Cuvette Wash
$635.00 piece
A 4.5L switchable 80/120kHz dual-frequency ultrasonic bath with 0-200W adjustable power and 450W heating, designed for cleaning optical components and delicate cuvette wash.
| Quantity | Price | Discount |
|---|---|---|
| 2-20 | $603.25 piece | 5% |
| 21-100 | $571.50 piece | 10% |
| 101+ | $539.75 piece | 15% |
Shipping & Delivery
-
Express Air Delivery
Door-to-door with tracking
7-15 Business Days
Calculated at checkout
-
Standard Ocean Freight
Best for bulk & heavy cargo
25-35 Business Days
Calculated at checkout
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Model | GL0404-80120 |
|---|---|
| Brand | Granbo |
| Manufacturer | Granbo Technology Industrial Shenzhen Co., Ltd. |
| Origin | China |
| Capacity | 4.5L |
| Frequency | 80/120kHz |
| Power | 0-200W |
| Tank Material | SUS304 Stainless Steel |
| Housing Material | SUS304 Stainless Steel |
| Function | Degassing, Digital Control, Heating, Noise Reduction, Power Adjustable, Pulse, Semiwave, Sweep, Switchable Dual-Frequency, Timer |
| Heater | RT~80°C |
| Heating Power | 450W |
| Timer | 1-9999s |
| Tank Size(mm) | 300 x 150 x 100 |
| Unit Size(mm) | 325 x 175 x 280 |
| Voltage | 100V-120V ~ 60Hz / 220V-240V ~ 50Hz |
| Plug Type | AU Plug, EU Plug, Other Plugs, UK Plug, US Plug |
| Warranty | 1 Year |
| Customization | 485 Port, Frequency, PLC System, Tanks Numbers |
| Certificates | CE, FCC, ISO 9001, RoHS |
| Applications | Beaker Sample Preparation, Cuvette Wash, Cuvettes, Glass Beakers, Laboratory Glassware, Labware, Optical Components, Pipettes, Sample Vials, Solvent Degassing |
Packaging
| Chargeable Weight | 7.7 kg |
|---|---|
| Package Dimensions | 41 × 25.5 × 35 cm |
Description
High-Frequency Cavitation for Delicate Substrates
This professional-grade ultrasonic cleaning bath features a switchable dual-frequency system of 80/120kHz, engineered specifically for delicate laboratory applications and high-precision components. Driven by 4 high-performance transducers, the unit delivers an adjustable ultrasonic output from 0 to 200W, allowing operators to fine-tune the energy density to prevent damage to sensitive materials. The 80kHz frequency is ideal for removing fine particles from intricate structures, while the 120kHz setting provides an ultra-gentle, high-density wash that safely penetrates micro-grooves and blind holes. Both the inner tank and outer housing are constructed from durable SUS304 stainless steel to resist cavitation erosion.
Advanced Digital Control and Multi-Mode Functionality
The digital control panel offers precise management of the cleaning cycle with an adjustable timer ranging from 1 to 9999 seconds. It features specialized processing modes, including Degas mode to quickly remove dissolved air from the liquid for maximum cavitation efficiency, Sweep mode to eliminate standing waves for uniform power distribution, and Pulse mode for high-impact cleaning of stubborn residues. The Semiwave function provides a reduced-intensity wave profile, offering a milder cleaning option for highly sensitive items.
Efficient Heating and Compact Bath Design
With a 4.5L capacity, the tank has internal dimensions of 300x150x100 mm and external unit dimensions of 325x175x280 mm, making it ideal for benchtop use. The integrated heating system provides 450W heating power, allowing users to adjust temperatures between 20°C and 80°C to accelerate chemical action. Please note that the heating function assists in loosening contaminants but does not feature constant temperature control. The multi-layer housing design provides effective noise reduction during high-frequency operation.

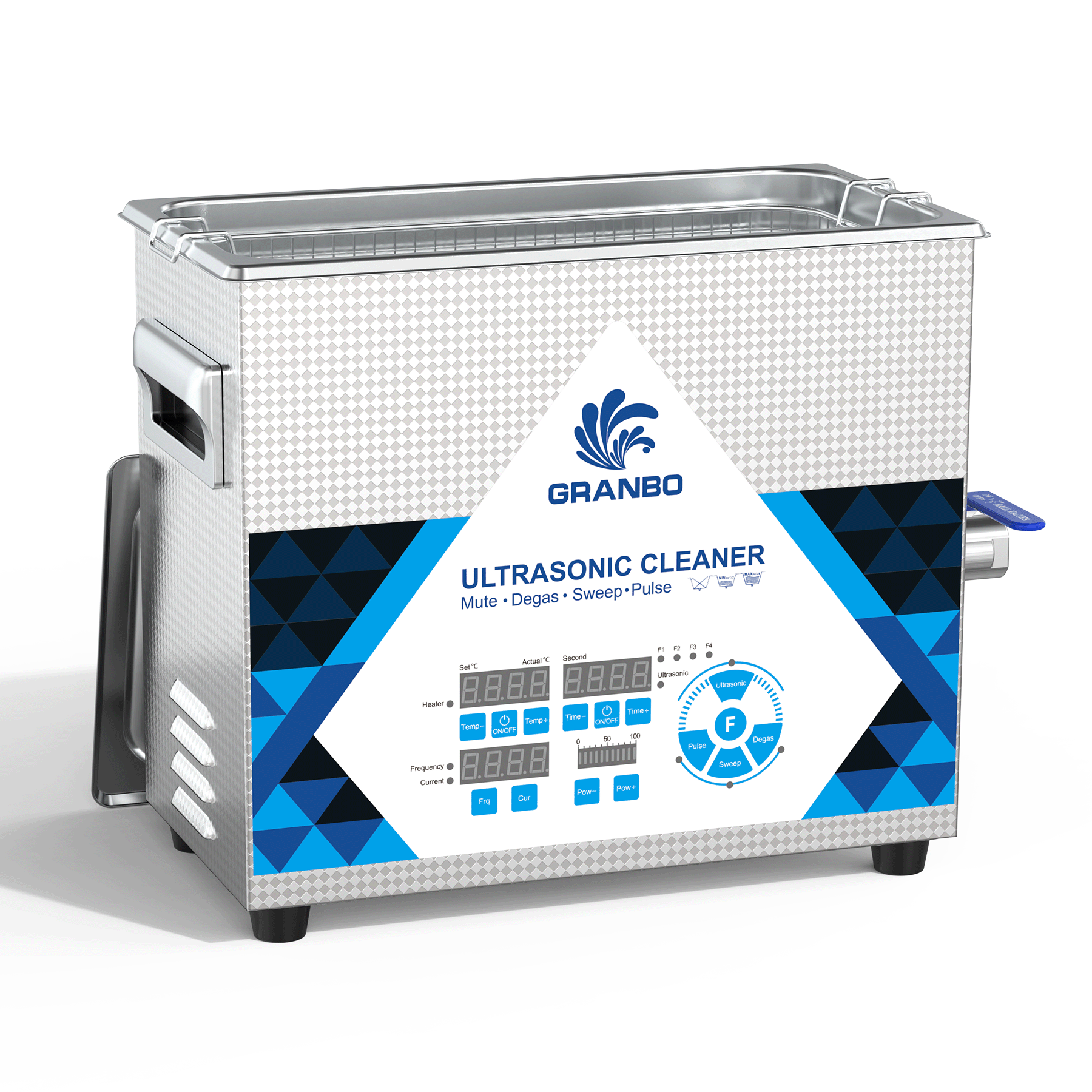

Control Panel Overview
Control Button Guide
Sweep Frequency Technology Overview
Pulse Mode Overview
Granbo PCB vs. Standard Ultrasonic Cleaner PCB
Multi-Layer Noise Reduction Design
Box Contents:
- 1 x Professional Ultrasonic Cleaner
- 1 x Durable Mesh Cleaning Basket
- One cover, one power cord, one manual warranty card certificate of conformity.
Packing type:
- One unit filled with thick foam, then standard export corrugated carton or wooden box.
Real Customer Feedback
Support & FAQ
Frequency determines cavitation bubble size, impact force, and penetration depth. Lower frequencies produce violent impact for heavy dirt, while higher frequencies provide dense, gentle cleaning for sub-micron microstructures:
• 28kHz: Heavy oil, scale, rust, polishing wax, cutting dust, and thick contaminants (>10μm) on heavy metal/resin parts.
• 40kHz: Universal choice for standard labware, stainless steel, glass, and general maintenance (>10μm particles).
• 68kHz / 80kHz: Fine cleaning for PCBs, watch components, optics, medical instruments, and micro-grooves (5–10μm particles).
• 120kHz: Precision cleaning for micro-blind holes (<0.1mm), semiconductors, ICs, optical lenses, and MEMS (1–5μm particles).
• 200kHz: Ultra-precision cleaning for silicon wafers, MEMS, thin films, and sub-micron / nano-scale contamination (<1μm).
Based on Granbo multi-frequency switchable configurations (Single/Dual/Triple/Quad), we recommend:
| Process | Recommended Frequency | Application Context |
|---|---|---|
| Dispersion | 17-28kHz / 40kHz / 120kHz | 17-28kHz for coarse solid chunks; 40kHz for powders; 120kHz for micro/nano suspensions. |
| Emulsification | 28kHz / 40kHz | 28kHz generates stronger shear force for heavy liquid blending. |
| Extraction | 40kHz / 120kHz | 120kHz is standard for intracellular substance extraction and cell disruption. |
| Mixing/Catalysis | 40kHz / 120kHz | 40kHz for routine mixing; 120kHz for micro-particle homogenization. |
| Synthesis | 80kHz / 120kHz | Prevents molecular degradation during material synthesis. |
| Environmental | 20kHz | High-power sonication for sludge treatment, sewage, and algae disruption. |
To resist cavitation erosion, Granbo customizes tank thickness and welding based on operating frequency:
| Frequency Range | Inner Tank (SUS304) | Outer Shell | Common Tank Capacities & Process |
|---|---|---|---|
| 28kHz - 200kHz | 1.5 mm Thickness | SUS304 (1.0 mm) | 3–10L, 14–22L, 30–58L, 61–135L. Industrial precision stamping & TIG welding. |
| 25kHz | 2.0 mm Thickness | SUS201 (1.0 mm) | Thickened tank; Manual oxy-acetylene heavy welding. |
| 17kHz & 20kHz | 3.0 mm Thickness | SUS201 (1.0 mm) | Ultra-thickened tank; Manual oxy-acetylene heavy welding. |
*Material Safety Tip: Soft metals (aluminum, brass, gold) and delicate glass/ceramics may scratch or fracture at 28kHz. We recommend 40kHz to 80kHz or pre-testing for delicate substrates.
When a workpiece has both stubborn contaminants and sub-micron precision requirements, use a multi-stage approach:
- Stage 1 (Pre-cleaning / 28kHz or 40kHz): Strips heavy grease, rust, polishing paste, scale, or coarse metal particles.
- Stage 2 (Fine Cleaning / 68kHz or 80kHz): Removes fine particles (5–10μm) from blind holes, threads, and complex internal geometry.
- Stage 3 (Ultra-Precision Rinse / 120kHz or 200kHz): Eliminates sub-micron (<1μm) residues without damaging fragile surfaces or thin films.
- Sweep Mode: Automatically sweeps ±1kHz around the center frequency to eliminate standing waves, ensuring uniform cavitation across the bath.
- Degas Mode: Uses pulsed ultrasound intervals (e.g., 5s on / 5s off) to purge dissolved air/gas from liquids—crucial for HPLC sample prep and max cavitation efficiency.
- Pulse Mode: Rapidly cycles power from 100% to 0% to produce a "blasting" impact that removes tough or baked-on residues.
Granbo units utilize Full-Bridge Separately Excited PCB Driver Boards rather than cheap self-excited circuits:
- Visualized Real-time Data: Displays live Power, Frequency, and Current for strict laboratory protocol logging.
- High Power Density: Guarantees a standard ≥ 0.3W/cm² for thorough cleaning. Power Density = Ultrasonic Power (W) / Radiating Area (cm²)
- Low Noise Operation: While 28kHz operation naturally produces more audible mechanical noise, Granbo's multi-layer noise-reduction design enables high-frequency units (≥68kHz) to operate at noise levels below 80dB.
Ultrasonic frequency determines sound wavelength and cavitation bubble collapse intensity:
- 20kHz (λ ≈ 72.5mm): Large bubbles, high collapse force. Best for heavy rust, sludge, and thick scale.
- 40kHz (λ ≈ 36.2mm): Medium bubbles. Ideal balance between cleaning power and component safety.
- 120kHz (λ ≈ 12.0mm): Micro bubbles. High penetration depth for sub-micron cracks and fragile silicon/semiconductor parts.
Beaker Size Matching:
• Beaker ≤ 500mL → 3.2L to 6.5L Tank.
• Beaker ≥ 800mL → 10L to 30L Tank (10L is the most popular size for general lab applications).
Temperature Management:
Ultrasonic activity inherently raises liquid temperature. Although Granbo heating goes up to 80°C, cavitation effectiveness drops significantly above 72°C–80°C due to increased vapor pressure. For temperature-sensitive or low-temp processes, use cooling coils or ice packs in the bath.
Standard production lead times for out-of-stock or customized Granbo models:
- 28kHz - 200kHz Models (Single, Dual, Triple, Quad Frequency): 3 - 5 business days for shipping.
- Ultra-Low Frequency (17kHz, 20kHz, 25kHz): 14 - 20 business days for shipping.
*Note: Customizations like RS-485 communication or PLC integration may slightly adjust delivery timelines. Contact us for precise scheduling.
More Models & Specifications
Click a model name to view its corresponding product page and detailed specifications.
80/120kHz Dual Frequency Series
| Model | Transducers
(PCS) |
Capacity
(L) |
Tank Size
(LxWxH mm) |
Unit Size
(LxWxH mm) |
Frequency
(kHz) |
Ultrasonic Power
(W) |
Heating Power
(W) |
Temp.
(℃) |
Timer
(S) |
| GL0404-80120 | 4 | 4.5 | 300x150x100 | 325x175x280 | 80/120 | 0-200 | 450 | 20-80 | 1-9999 |
| GL0406-80120 | 4 | 6.5 | 300x150x150 | 325x175x330 | 80/120 | 0-200 | 450 | 20-80 | 1-9999 |
| GL0810-80120 | 8 | 10 | 300x240x150 | 325x265x330 | 80/120 | 0-400 | 600 | 20-80 | 1-9999 |
| GL0814-80120 | 8 | 14 | 300x240x200 | 325x265x380 | 80/120 | 0-400 | 600 | 20-80 | 1-9999 |
| GL1015-80120 | 10 | 15 | 330x300x150 | 355x325x330 | 80/120 | 0-500 | 1000 | 20-80 | 1-9999 |
| GL1019-80120 | 10 | 19 | 330x300x200 | 355x325x380 | 80/120 | 0-500 | 1000 | 20-80 | 1-9999 |
| GL1622-80120 | 16 | 22 | 500x300x150 | 530x330x335 | 80/120 | 0-800 | 1000 | 20-80 | 1-9999 |
| GL1630-80120 | 16 | 30 | 500x300x200 | 530x330x385 | 80/120 | 0-800 | 1000 | 20-80 | 1-9999 |
4.5L Capacity
| Model | Transducers (PCS) |
Capacity (L) |
Tank Size (L×W×H mm) |
Unit Size (L×W×H mm) |
Frequency (kHz) |
Ultrasonic Power (W) |
Heating Power (W) |
Temp. (°C) |
Timer (S) |
|---|---|---|---|---|---|---|---|---|---|
| GNLH0304-17 | 3 | 4.5 | 300×150×100 | 400×210×220 | 17 | 0–180 | 450 | 20–80 | 1–9999 |
| GNLH0304-20 | 3 | 4.5 | 300×150×100 | 400×210×220 | 20 | 0–300 | 450 | 20–80 | 1–9999 |
| GNL0404-25 | 4 | 4.5 | 300×150×100 | 400×210×220 | 25 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0304-28 | 3 | 4.5 | 300×150×100 | 325×175×290 | 28 | 0–150 | 450 | 20–80 | 1–9999 |
| GL0304-33 | 3 | 4.5 | 300×150×100 | 325×175×290 | 33 | 0–150 | 450 | 20–80 | 1–9999 |
| GL0304-40 | 3 | 4.5 | 300×150×100 | 325×175×280 | 40 | 0–150 | 450 | 20–80 | 1–9999 |
| GL0404-40 | 4 | 4.5 | 300×150×100 | 325×175×280 | 40 | 0–200 | 450 | 20–80 | 1–9999 |
| GLS0804-50 | 8 | 4.5 | 300×150×100 | 325×175×280 | 50 | 0–240 | 450 | 20–80 | 1–9999 |
| GLS0804-53 | 8 | 4.5 | 300×150×100 | 325×175×280 | 53 | 0–280 | 450 | 20–80 | 1–9999 |
| GL0404-68 | 4 | 4.5 | 300×150×100 | 325×175×290 | 68 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-80 | 4 | 4.5 | 300×150×100 | 325×175×280 | 80 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-120 | 4 | 4.5 | 300×150×100 | 325×175×280 | 120 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-130 | 4 | 4.5 | 300×150×100 | 325×175×280 | 130 | 0–240 | 450 | 20–80 | 1–9999 |
| GLS0804-200 | 8 | 4.5 | 300×150×100 | 325×175×280 | 200 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0304-2840 | 3 | 4.5 | 300×150×100 | 325×175×290 | 28/40 | 0–150 | 450 | 20–80 | 1–9999 |
| GL0404-4068 | 4 | 4.5 | 300×150×100 | 325×175×290 | 40/68 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-4080 | 4 | 4.5 | 300×150×100 | 325×175×280 | 40/80 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-40120 | 4 | 4.5 | 300×150×100 | 325×175×280 | 40/120 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-80120 | 4 | 4.5 | 300×150×100 | 325×175×280 | 80/120 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-4080100 | 4 | 4.5 | 300×150×100 | 325×175×280 | 40/80/100 | 0–200 | 450 | 20–80 | 1–9999 |
| GL0404-4080120 | 4 | 4.5 | 300×150×100 | 325×175×280 | 40/80/120 | 0–200 | 450 | 20–80 | 1–9999 |
