50W Ultrasonic Cleaner Circuit Board Piezoelectric Transducer Drive PCB Replacement Parts for DIY Bath and Tank Washing Systems

• Input Voltage: 100V-120V ~ 60Hz / 220V-240V ~ 50Hz (Shipped according to the destination country, or selectable by order note)
• Rated Output Power: 50W
• Load Capacity: Drives 1 piece of 50W ultrasonic transducer
• Application: DIY ultrasonic cleaner builds, equipment maintenance, and transducer replacement

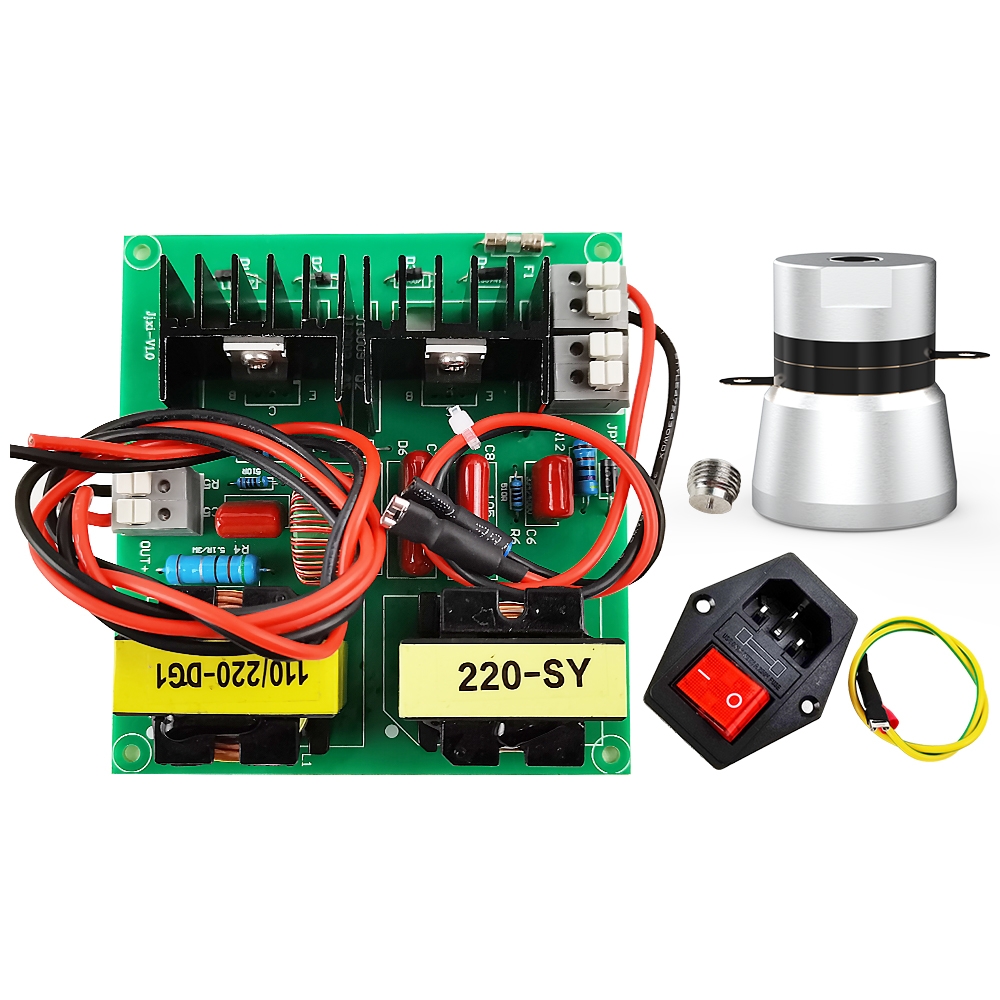

Package Contents

• 1 x 50W Ultrasonic Driver Circuit Board
• 1 x 50W / 40 kHz Horn Type Ultrasonic Transducer
• 1 x Mounting Stud
• 1 x Power Inlet Socket with Integrated Switch and Fuse
• 1 x Grounding Wire

Technical Specifications

Circuit Board Specifications

• Model Number: Jixi-V1.0
• Output Voltage: ~400V AC

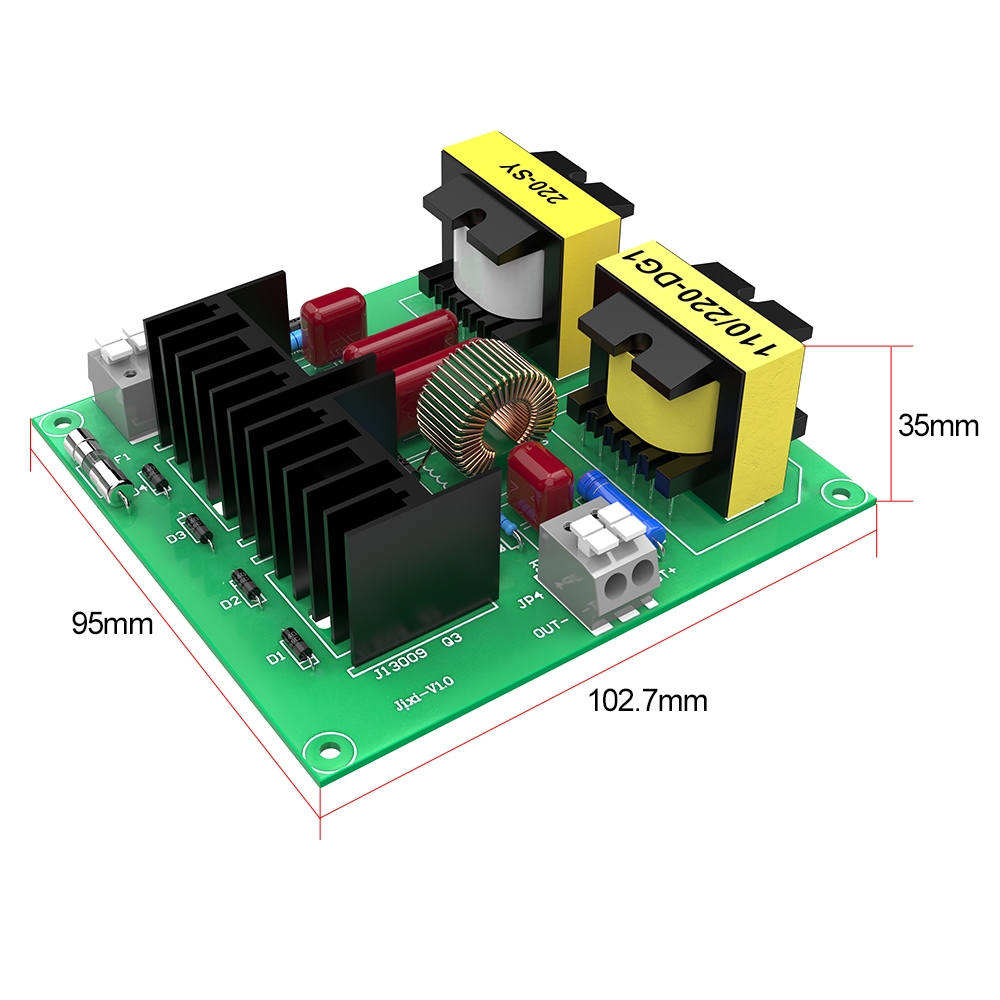

• Board Dimensions: 102.7 mm (L) x 95 mm (W) x 35 mm (H)
• Key Components: Inductive choke (110/220-DG1), matching transformer (220-SY), high-voltage power transistors (J13009), line fuse (F1)
• Terminal Interfaces:
  • OUT+: Ultrasonic transducer positive terminal
  • OUT-: Ultrasonic transducer negative terminal
  • + / Live: AC power line (L) input
  • - / Neutral: AC power neutral line (N) input
  • Secondary terminal block: Dedicated heating element output lines (Live and Neutral)

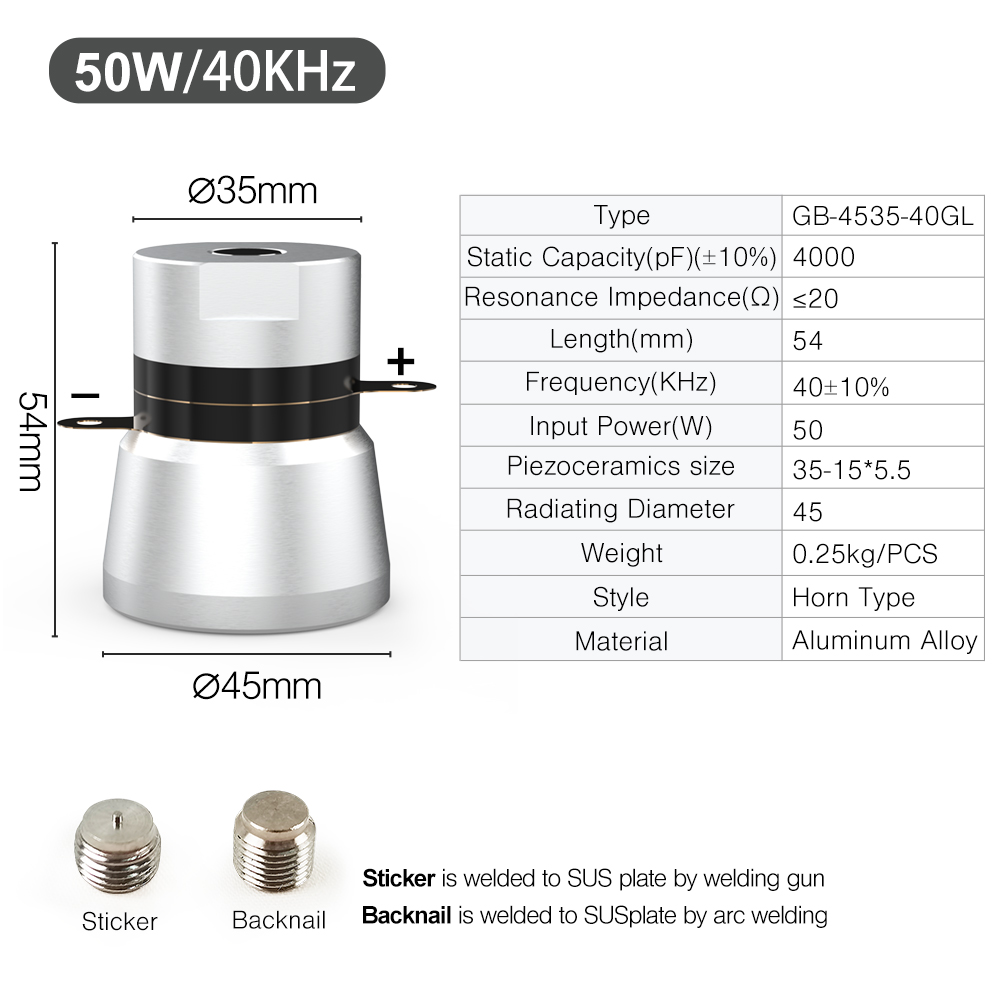

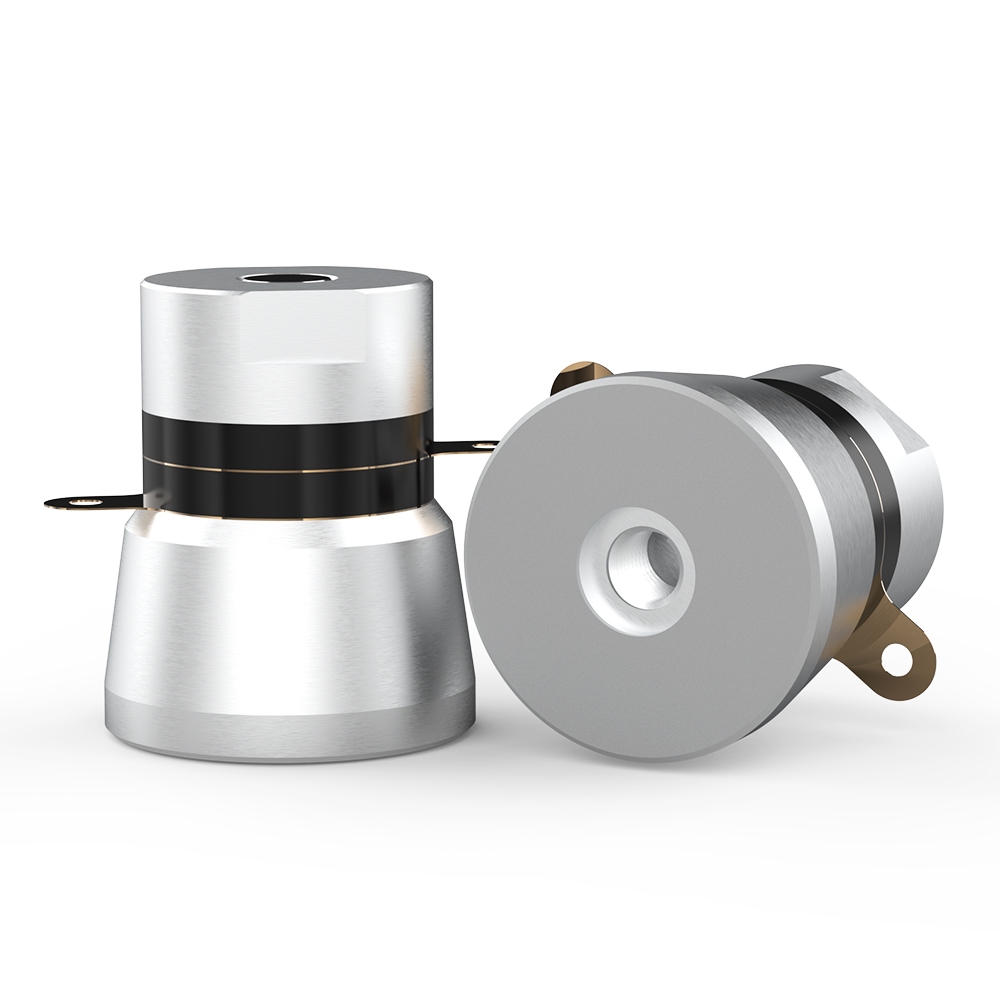

Ultrasonic Transducer Specifications

• Model: GB-4535-40GL
• Operating Frequency: 40 kHz ± 10%
• Input Power: 50W
• Static Capacitance: 4000 pF ± 10%
• Resonance Impedance: ≤ 20 Ω
• Total Length (Height): 54 mm
• Top Diameter: Ø 35 mm
• Radiating Surface Diameter: Ø 45 mm
• Piezoceramic Ring Dimensions: 35 mm (OD) x 15 mm (ID) x 5.5 mm (Thickness)
• Unit Weight: 0.25 kg
• Structure: Horn Type
• Material: Aluminum Alloy
• Mounting Options:
  • Stud with Pilot Tip (Sticker): Welded to stainless steel plate using a stud welding gun
  • Threaded Stud (Backnail): Welded to stainless steel plate using arc welding

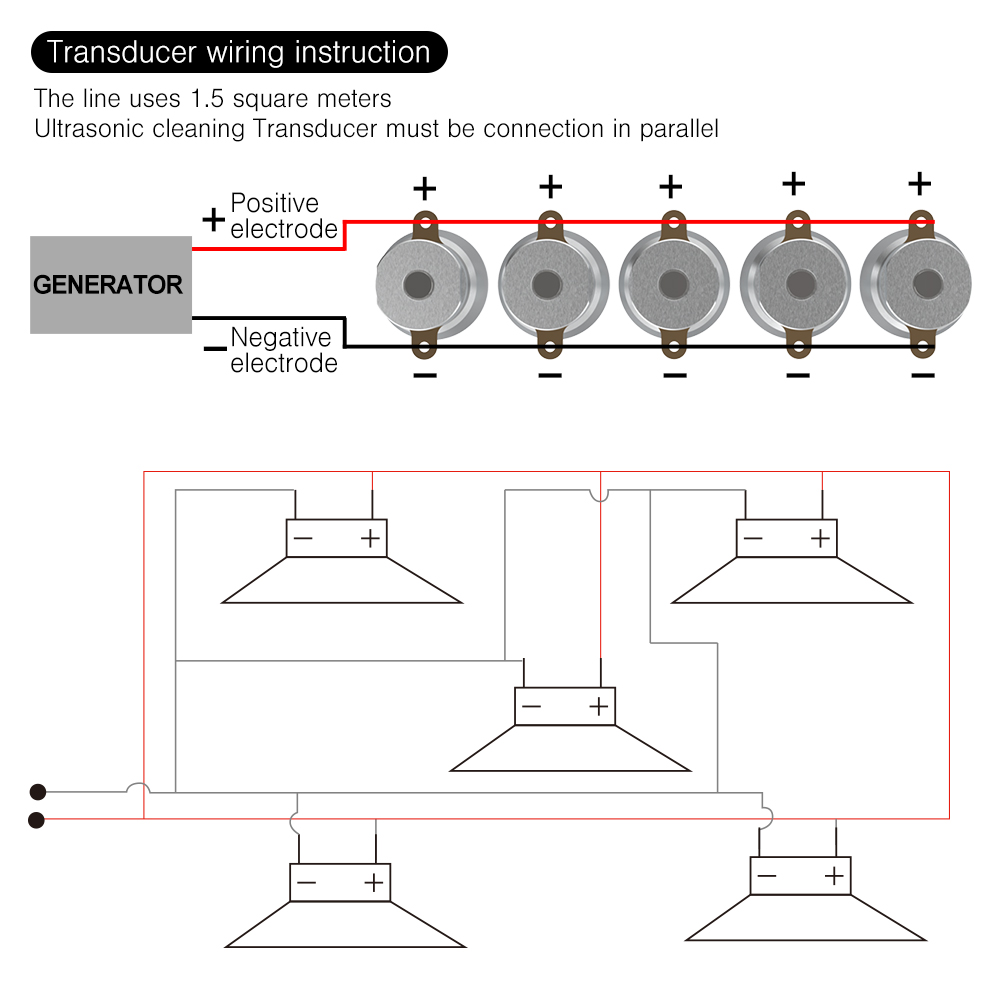

Wiring & Electrical Connection

• Wire Specification: Conductor cross-sectional area of 1.5 mm²
• Connection Mode: Ultrasonic cleaning transducers must be connected in parallel.

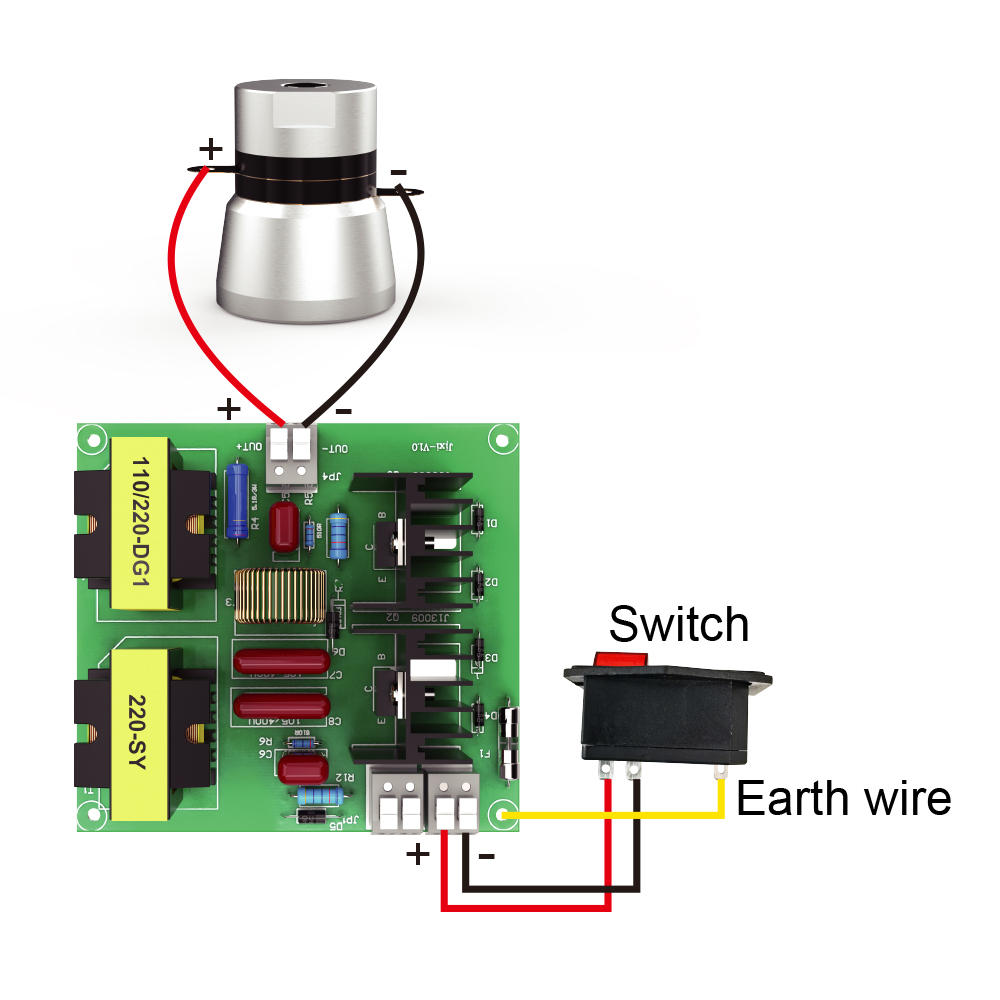

• Connection Steps:
  • Connect the positive electrode tab (+) of the transducer to the circuit board OUT+ terminal.
  • Connect the negative electrode tab (-) of the transducer to the circuit board OUT- terminal.
  • Connect the power socket switch output lines to the AC input terminals on the driver board.
  • Fasten the yellow/green earth wire securely to the metal cleaning tank chassis for grounding.

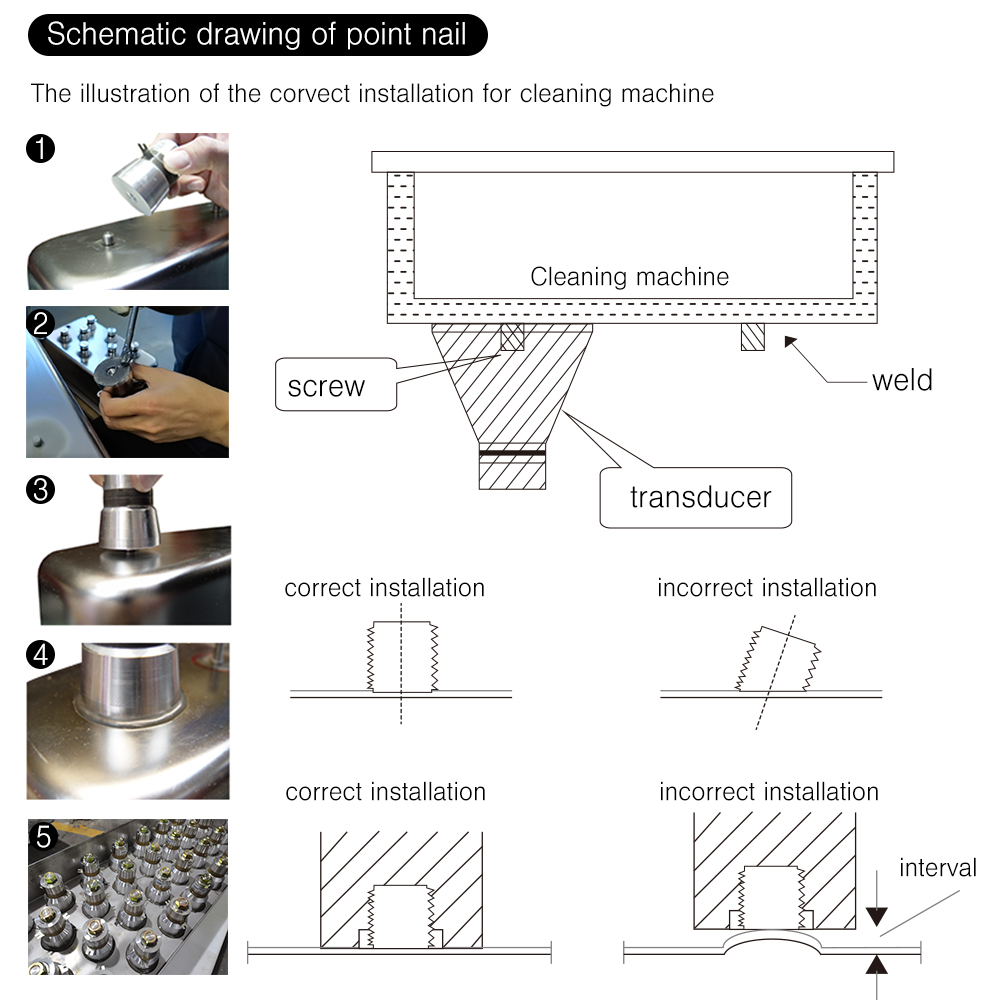

Transducer Installation Instructions

1. Perpendicular Stud Alignment: Weld the threaded stud straight onto the stainless steel tank plate. A tilted stud prevents proper mechanical coupling.
2. Flush Contact Surface: The transducer radiating surface must sit flat against the cleaning tank bottom. Eliminate any intervals, gaps, or surface bulges.
3. Installation Steps:
   • Step 1: Align the stud on the tank surface.
   • Step 2: Weld the stud securely to the stainless steel plate.
   • Step 3: Apply structural adhesive to the base and thread the transducer onto the welded stud.
   • Step 4: Tighten firmly to ensure direct, flush contact with the metal bottom plate.

Instructions for Wiring Between Circuit Board and Transducer

1. The circuit board cannot be powered on without load.
2. After installation, do not start the machine for more than 1 minute without any cleaning fluid.
3. The 60W drive board is for one transducer and is connected to the terminal of the circuit board. One circuit board and one transducer are used together.
4. The 120W drive board is for two transducers and is connected to the terminal of the circuit board. One circuit board and two transducers are used together.
5. The 180W drive board is for three transducers and is connected to the terminal of the circuit board. One circuit board and three transducers are used together.
6. OUT+ is connected to the positive pole of the transducer, and OUT- is connected to the negative pole of the transducer. The power supply L of the drive board is positive and N is negative. Parallel drive plate Lb is positive and Nb is negative. Heating PTC is positive and N is negative. The display board HT is the interface and the display board J1 is the temperature probe interface. Remember not to get it wrong.

(Note: The voltage at the output terminal of the circuit board is about 400V. Pay attention to safety. It is best to have a leakage protection switch on the input power supply to ensure safety!)
